蜀都5米系列城市客车

产品特点
产品规格
Product Features
产品特点

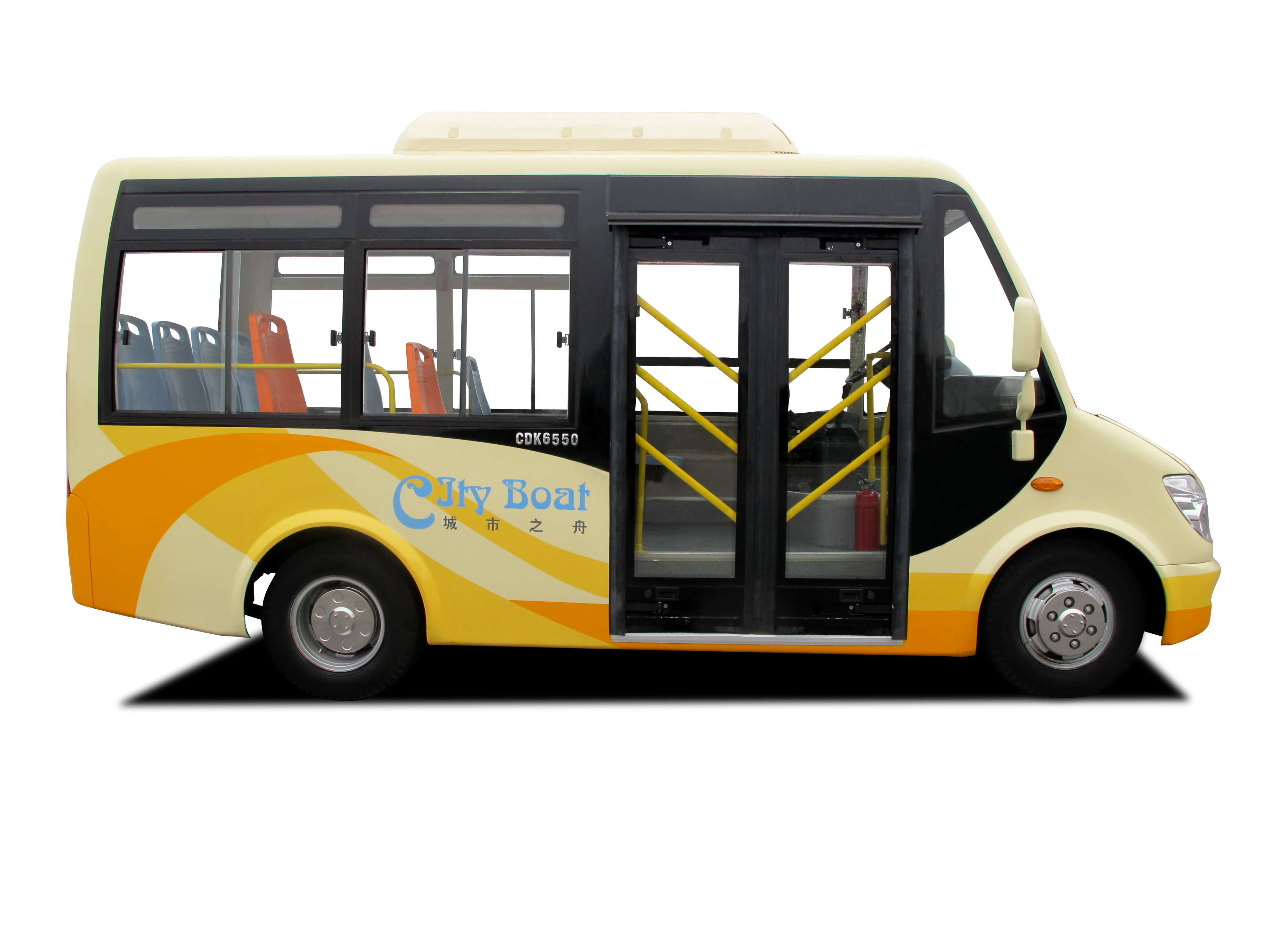

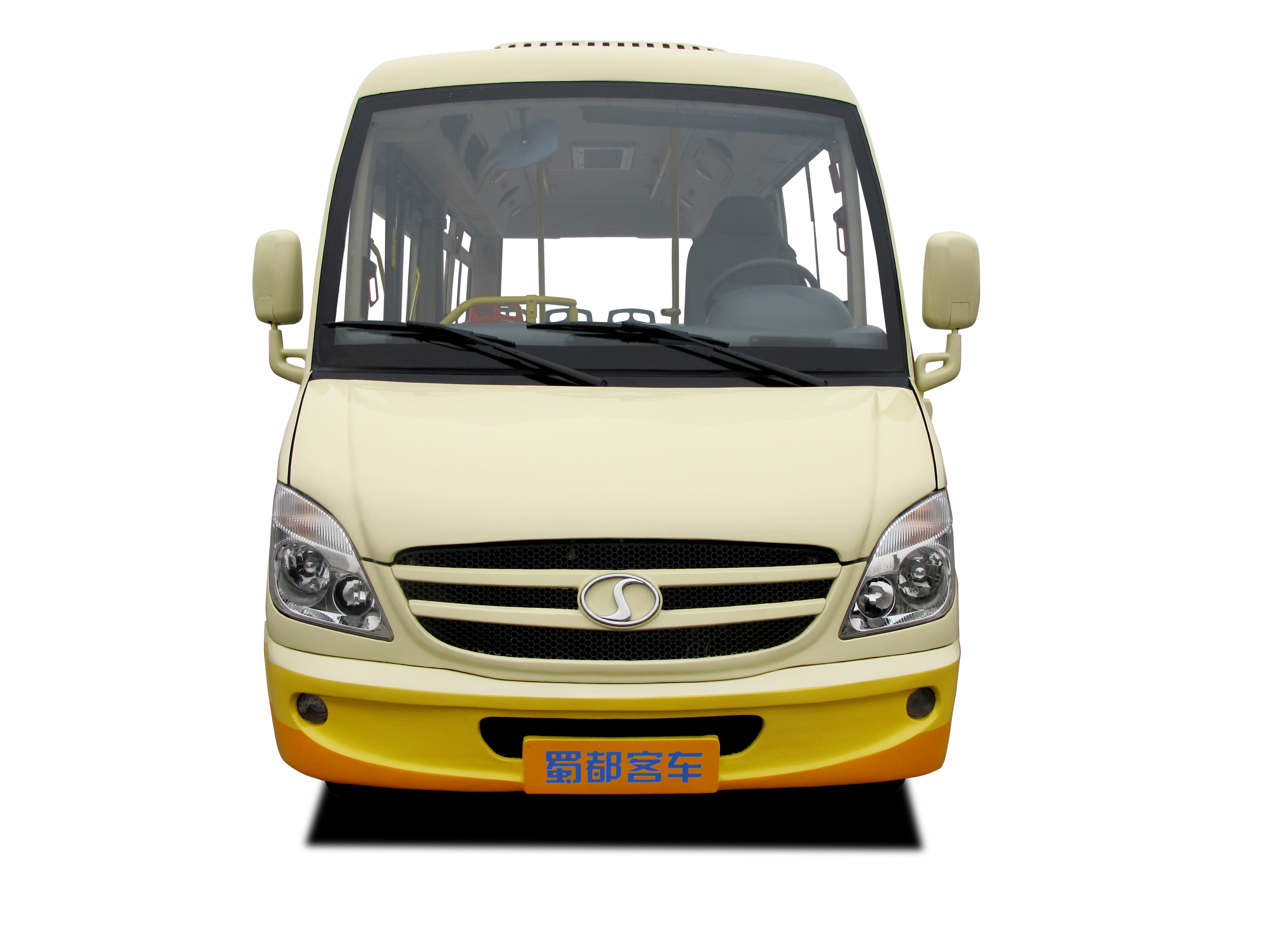

CDK6550CEG5城市客车



Ø  根据公交典型工况,优选底盘配置。

Ø  具备B1驾照资格就能驾驶的社区巴士及乡村巴士。

Ø  短轴距、窄车身,满足在城市社区窄街道及乡村公路等道路条件下运行。

Ø  整车二级踏步,双通道乘客门设置,方便乘客上下车。

[[PRODUCT_LANG_EN]]

CDK6550CEG5 City Bus

The chassis has been optimized according to the typical working condition of the bus.



Community bus /Country bus, B1 driving license.



Low-floor / low-entry design ensures convenient passenger access.



Short wheelbase, narrow body, make the bus iscapable of running in the narrow streets of thecommunity and country roads



Two steps, dual channel passenger door,make passengers easy to get on and off.

Product specifications
产品规格

配置参数

车型

CDK6550CEG5

长*宽*高(mm)

5520*2020*2810

额定载客人数(人)/座位数(座)

19/10-12

轴距(mm)

3300

最大总质量(kg)

5400

发动机

燃气发动机

地板形式

二级踏步

悬挂系统

钢板弹簧

轮胎规格

7.00-16(选装7.00R16)

[[PRODUCT_LANG_EN]]

Specifications

Vehicle type

CDK6550CEG5

Length * Width * Height (mm)

7010*2180*2950

Rated passenger capacity   (persons)/Number of seats (seats)

19/10-12

Wheelbase (mm)

3300

Maximum total mass (kg)

5400

Engine

Gas engine

Floor form

Second step

Suspension system

Leaf spring

Tyre specification

7.00-16(optional7.00R16)
