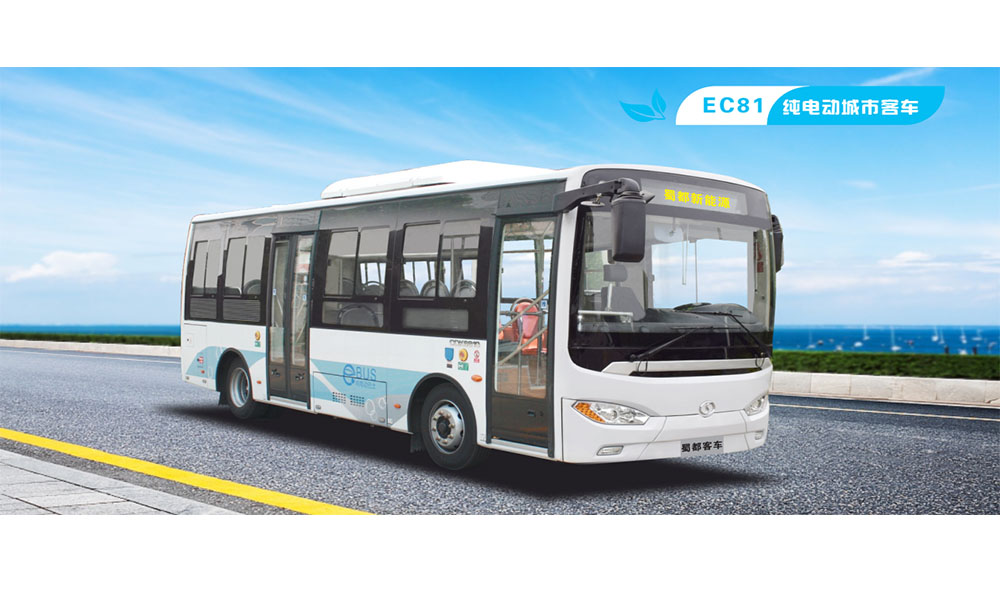

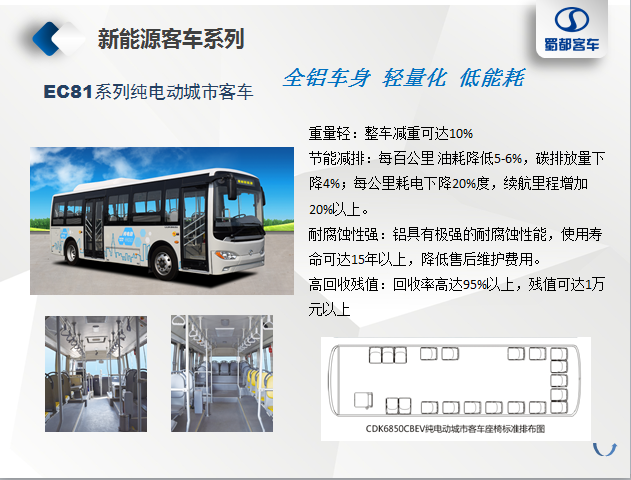

蜀都新能源EC81系列纯电动城市客车

产品特点
产品规格
Product Features
产品特点

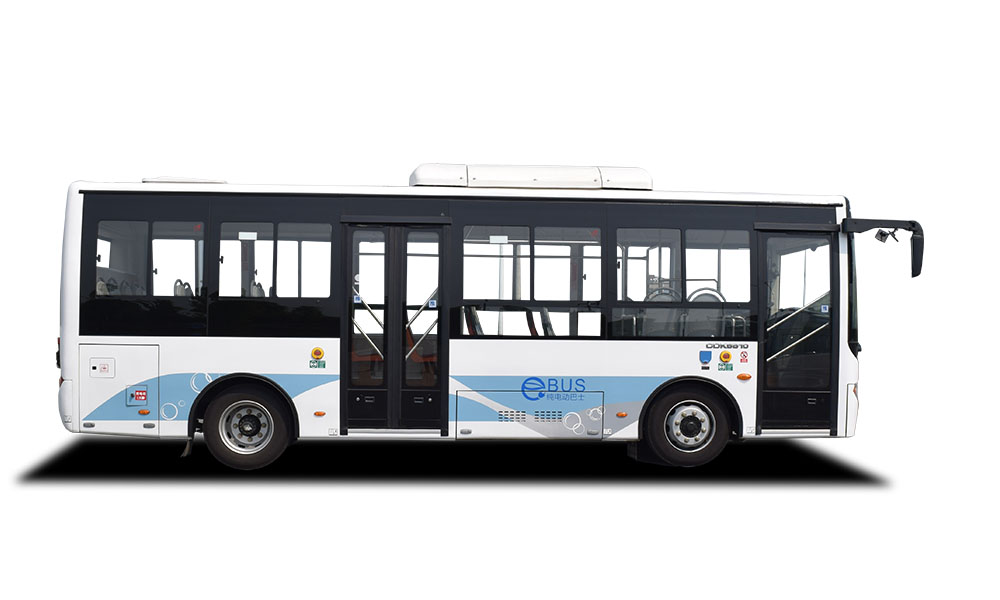

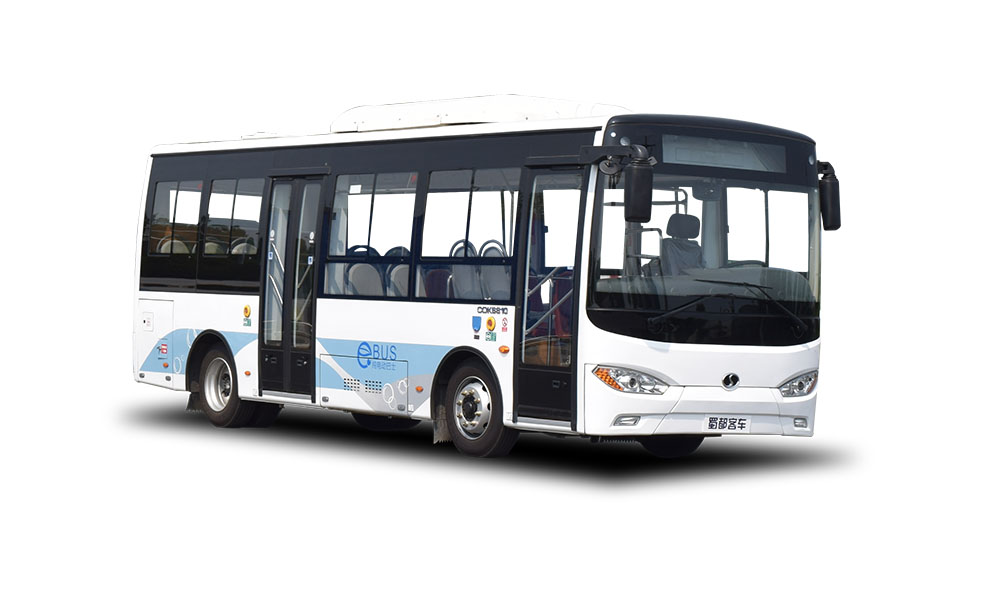

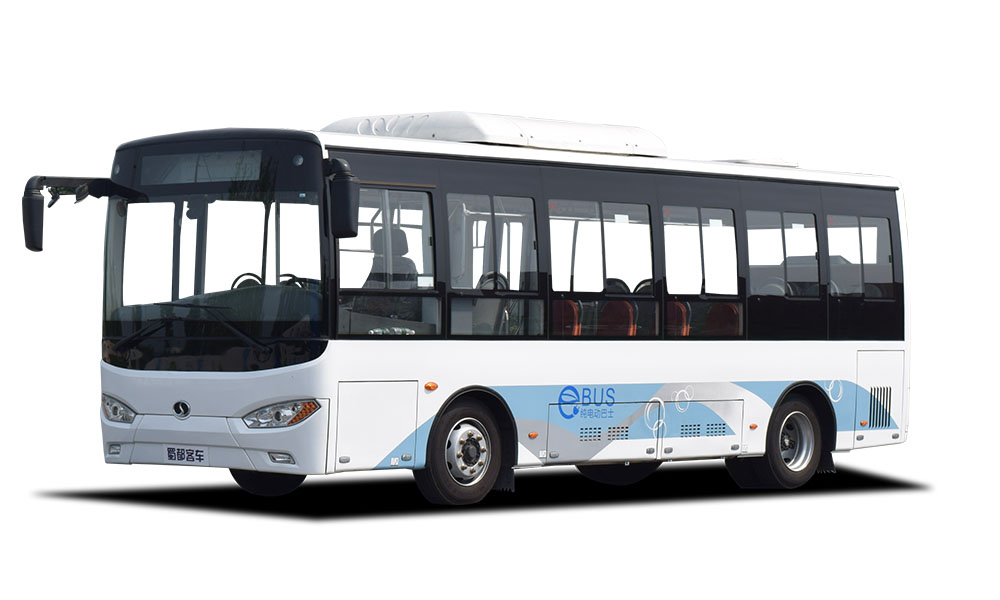

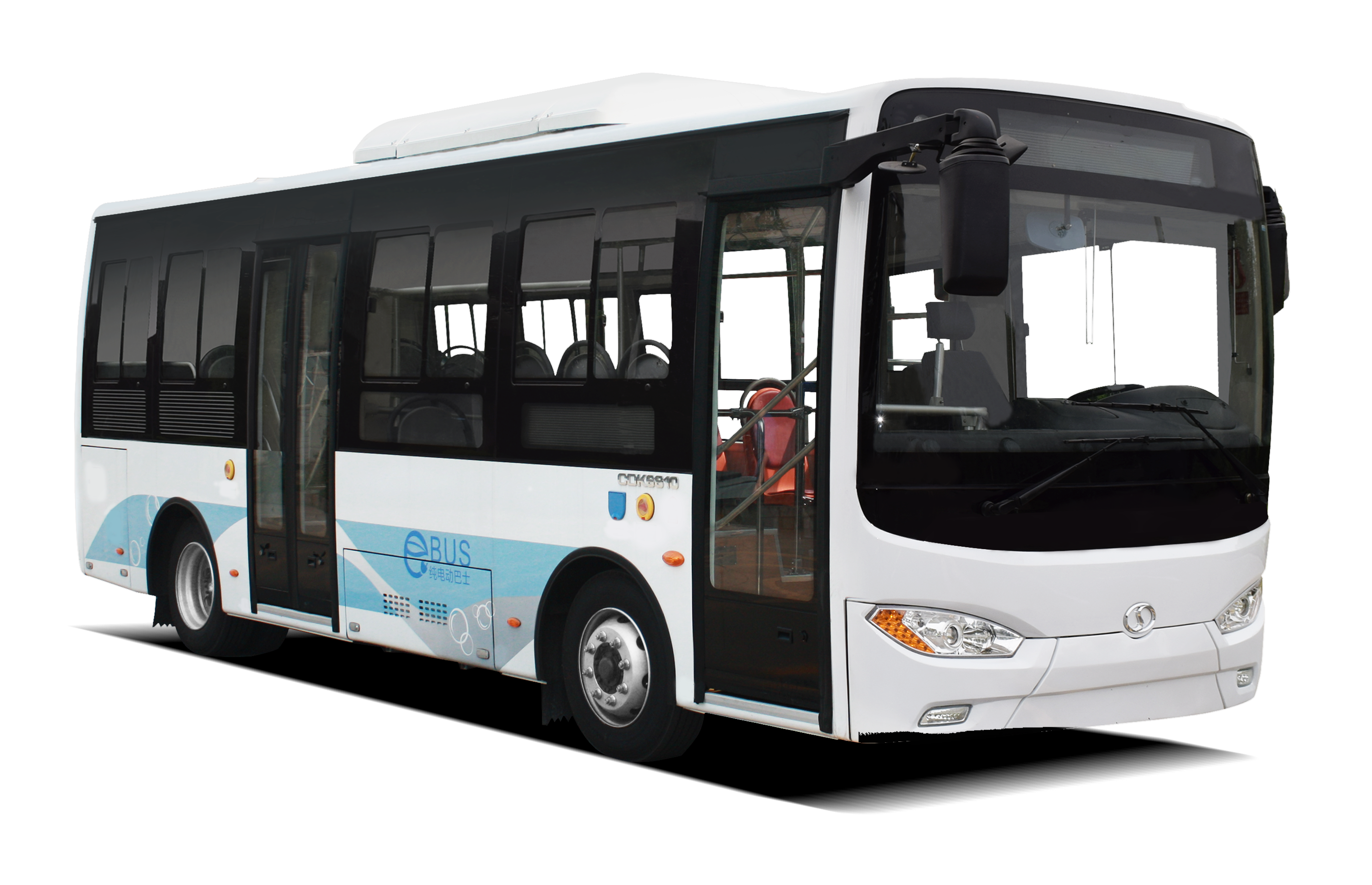

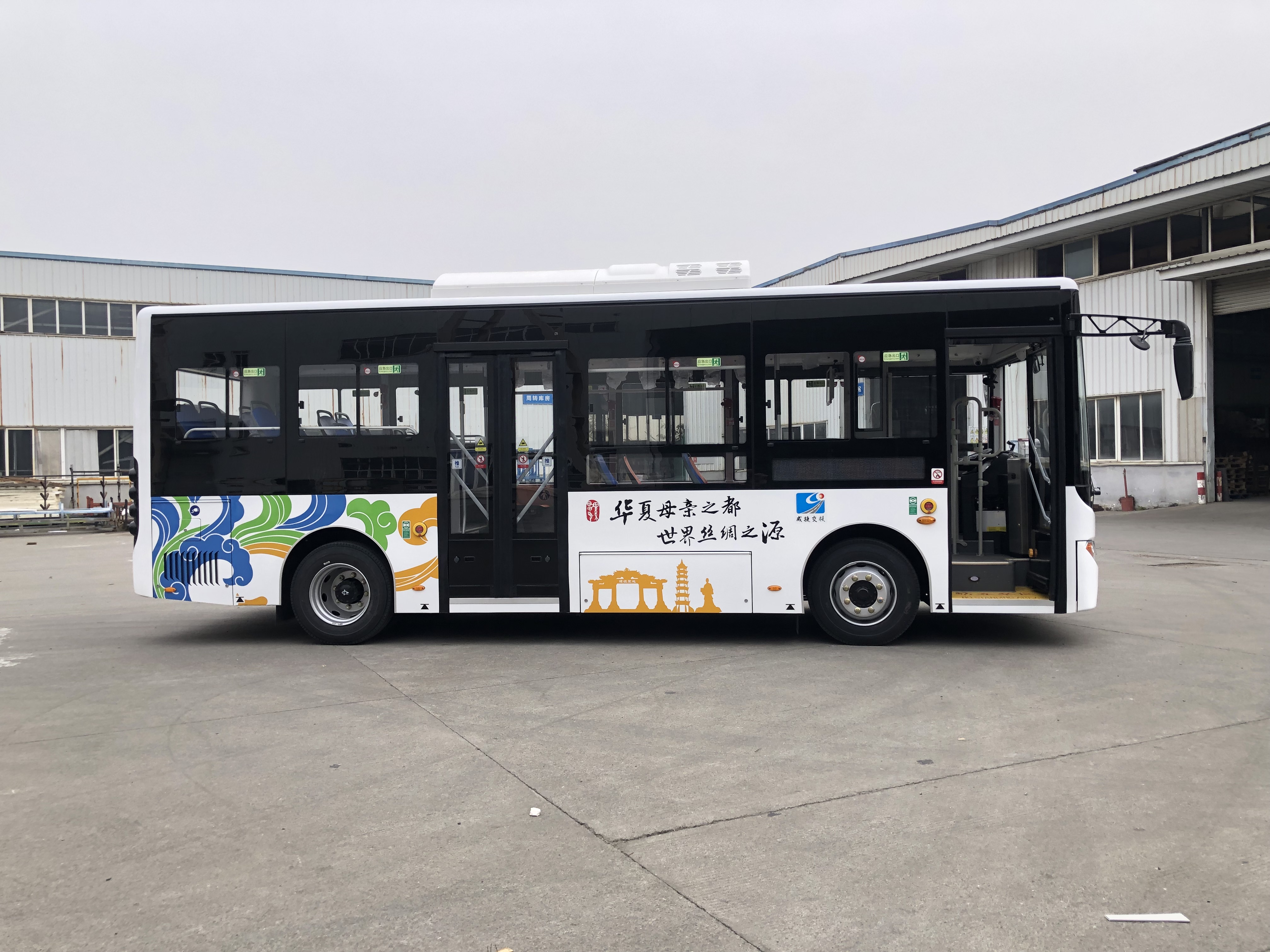

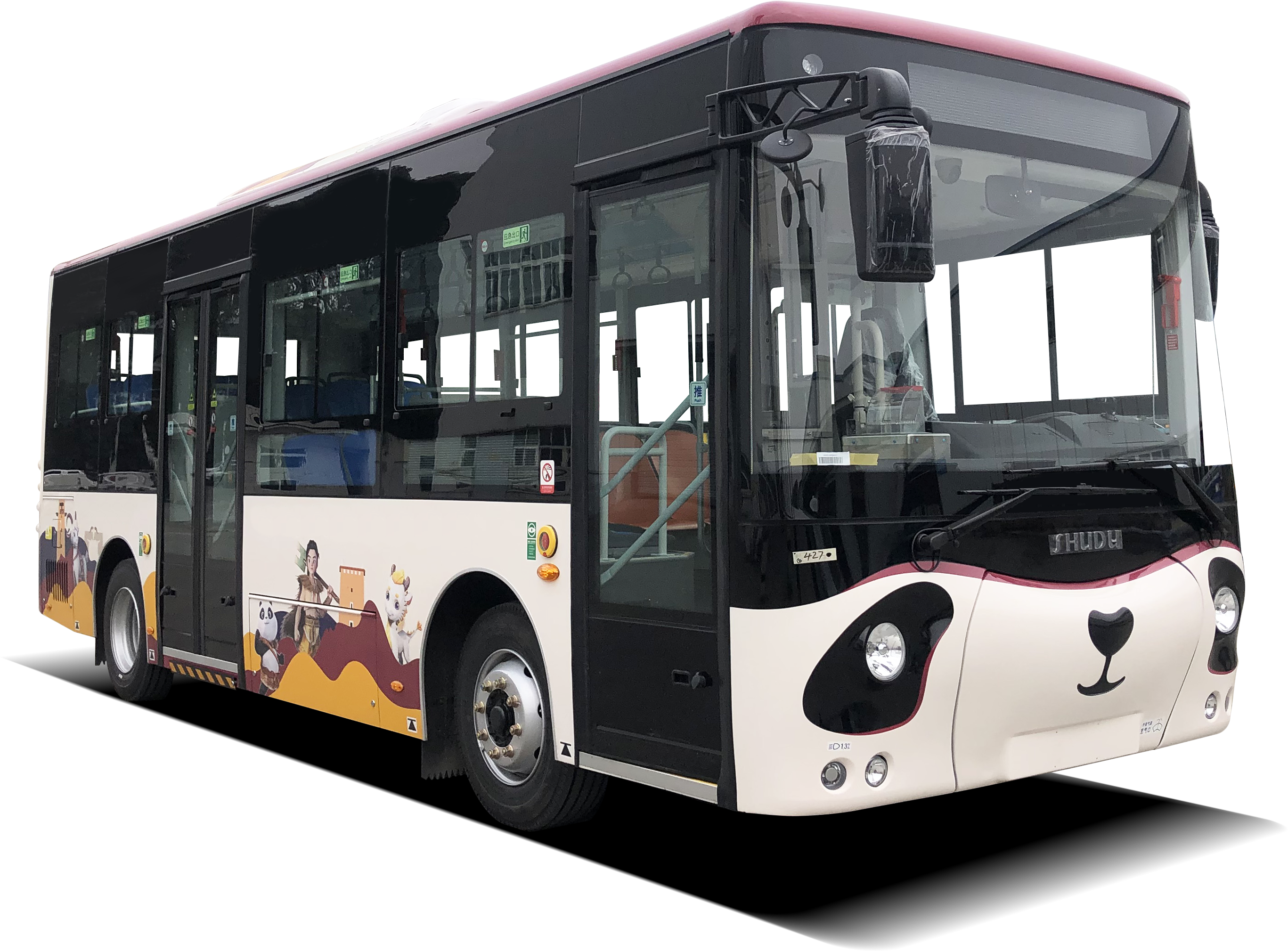

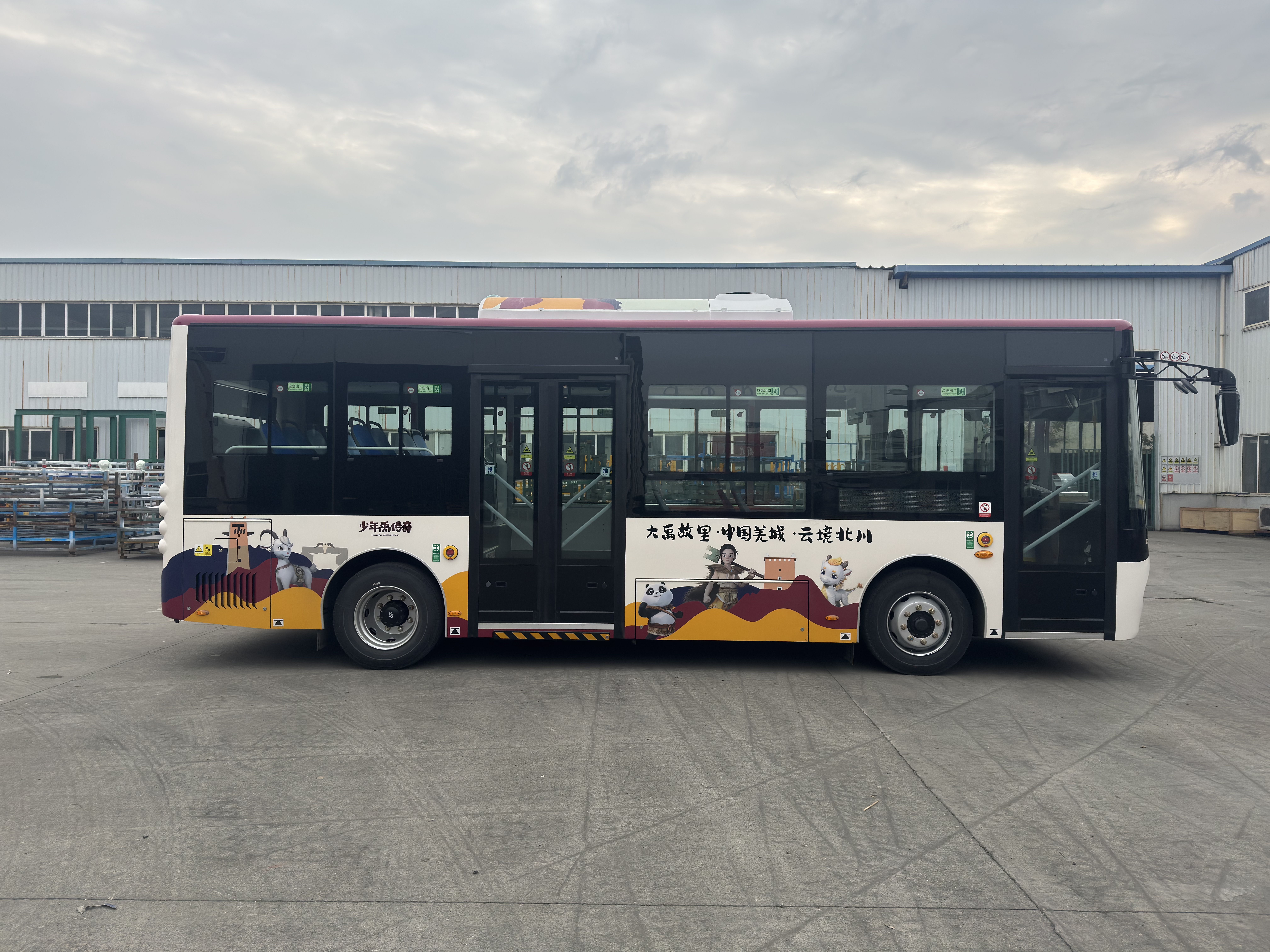

CDK6810CBEV2纯电动城市客车


Ø  适用于城市公交道路使用,适合支线公交的运载力及道路情况。



Ø  车身骨架采用封闭环设计,全承载结构,选用高强度钢,保证车身的防撞性能,提升车辆的安全性。



Ø  三电系统采用三级绝缘防护,保证车辆的安全性和可靠性。



Ø  整车阴极电泳防腐工艺,整车防腐能力达到国内一流水平,大大提升产品防腐性能。



Ø  内饰采用环保材料,保证车内空气质量绿色健康。



Ø  A柱的运用,减少驾驶员盲区,视野更加开阔,给驾驶员更舒适的驾驶感受,同时提升驾驶安全性。

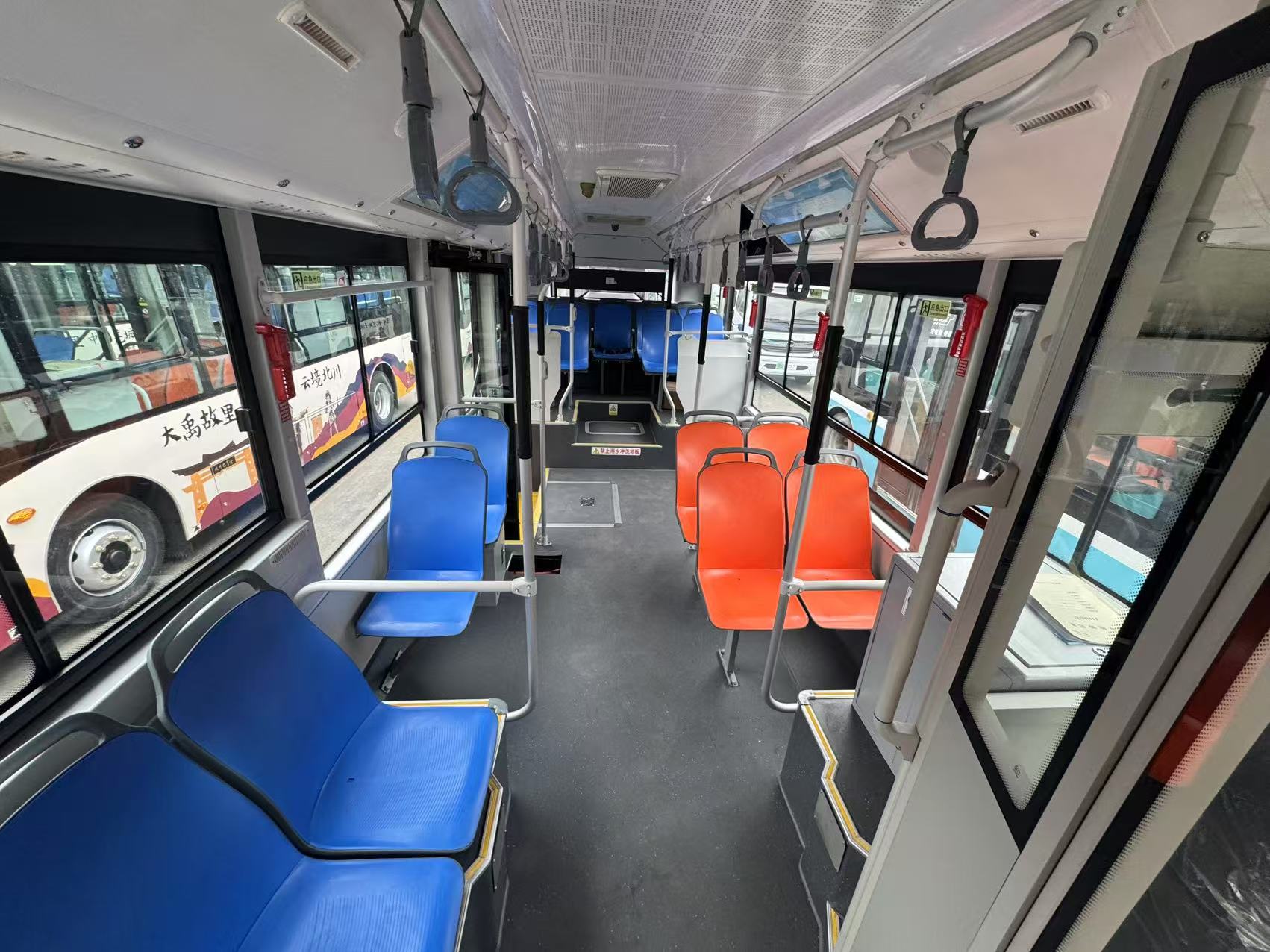

Ø  车内布置根据人机工程学设计,车内空间高、前后挡和侧玻宽大、座椅间距宽敞,为乘客提供舒适的乘车环境。



Ø  配置CAN总线和总线仪表,实时显示车辆、电池和故障等信息,使驾驶员可以及时掌握车辆状态。

[[PRODUCT_LANG_EN]]

CDK6810CBEV2 Battery Electric City Bus


It is suitable for the use of urban bus roads, suitable for the carrying capacity of regional buses and road conditions.



The body frame adopts the closed ring design, the full bearing structure, and the selection of high-strength steel to ensure the collision resistance of the body and improve the safety of the vehicle.



The three-electric system adopts three-level insulation protection to ensure the safety and reliability of the vehicle.



Vehicle cathodic electrophoresis anticorrosion process, vehicle anticorrosion ability to reach the domestic first-class level, greatly improve product anticorrosion performance.



The interior adopts environmentally friendly materials to ensure the green and healthy air quality in the car.



The use of thin A-pillar can reduce the driver's blind area, broaden the vision, give the driver A more comfortable driving feeling, and improve the driving safety.



Interior layout according to ergonomic design, the interior space is high, the front and rear gears and side glass are wide, and the seat spacing is spacious, providing a comfortable driving environment for passengers.



Configure CAN bus and bus instrument, real-time display vehicle, battery and fault information, so that the driver can grasp the vehicle status in time.


Product specifications
产品规格

蜀都EC81配置参数

车型

CDK6810CBEV2

长*宽*高(mm)

8100,8200*2450*3200,3250

额定载客人数(人)/座位数(座)

63/14-28

轴距(mm)

4300

最大总质量(kg)

13500

电池容量(kWh)

176.043

续航里程(等速法km)

360

电机额定/峰值功率(kW)

90/190

地板形式

二级踏步



悬挂系统

钢板弹簧

轮胎规格

265/70R19.5

[[PRODUCT_LANG_EN]]

Shudu EC81   Specifications

Vehicle type

CDK6810CBEV2

Length * Width * Height (mm)

8100,8200*2450*3200,3250

Rated   passenger capacity (persons)/Number of seats (seats)

63/14-28

Wheelbase (mm)

4300

Maximum total mass (kg)

13500

Battery capacity (kWh)

176.043

Range (constant speed method km)

360

Motor rating/Peak power (kW)

90/190

Floor form

Second step

Suspension system

Leaf spring

Tyre specification

265/70R19.5
