蜀都新能源ES11纯电动双层观光城市客车

产品特点
产品规格
Product Features
产品特点

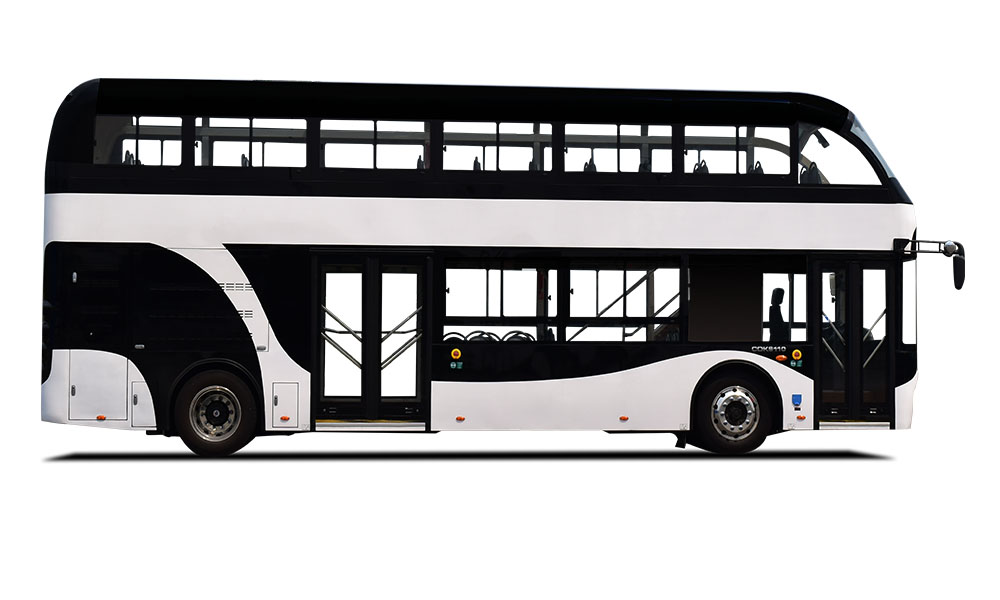

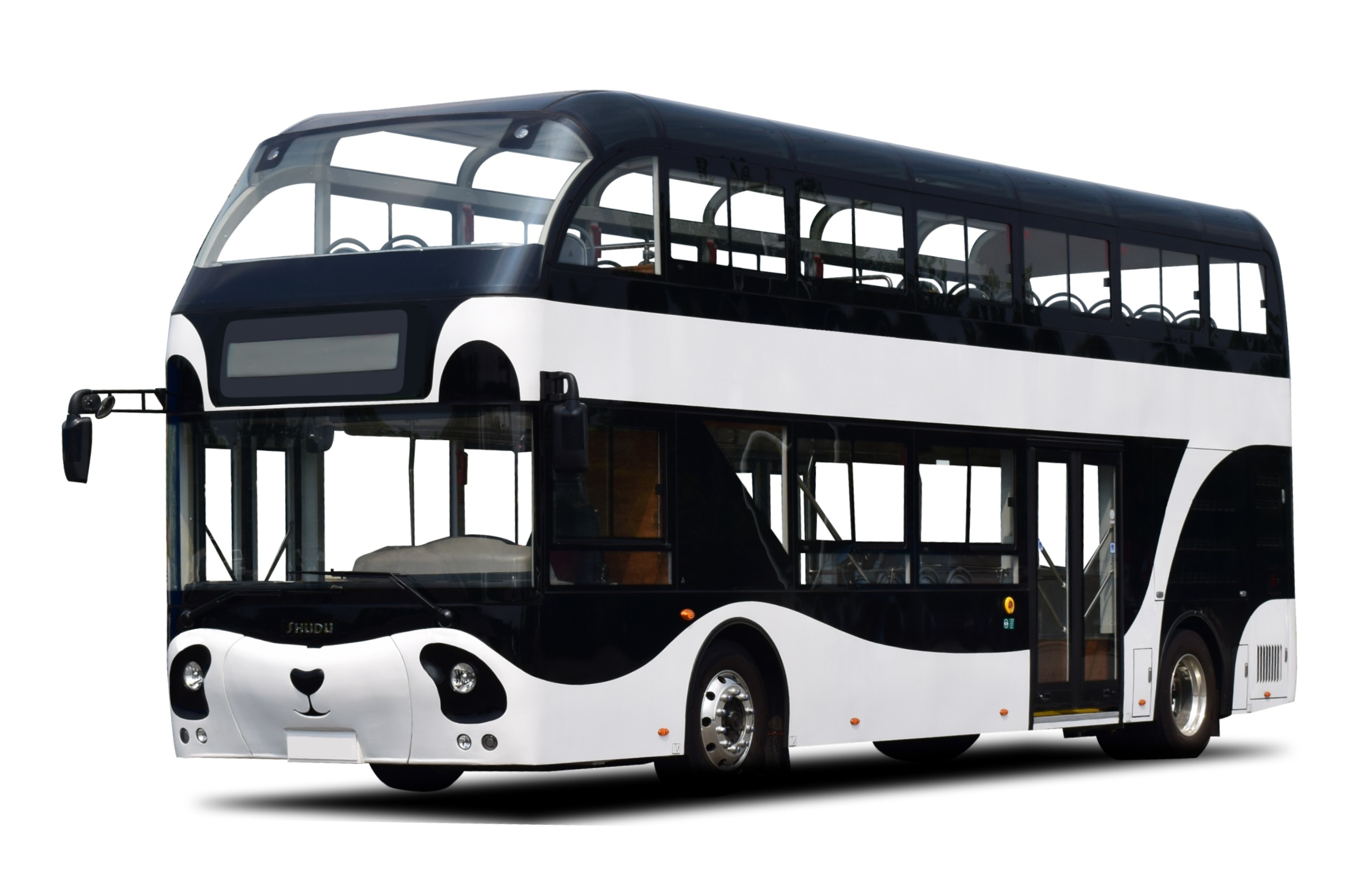

CDK6116CSBEV纯电动双层城市客车

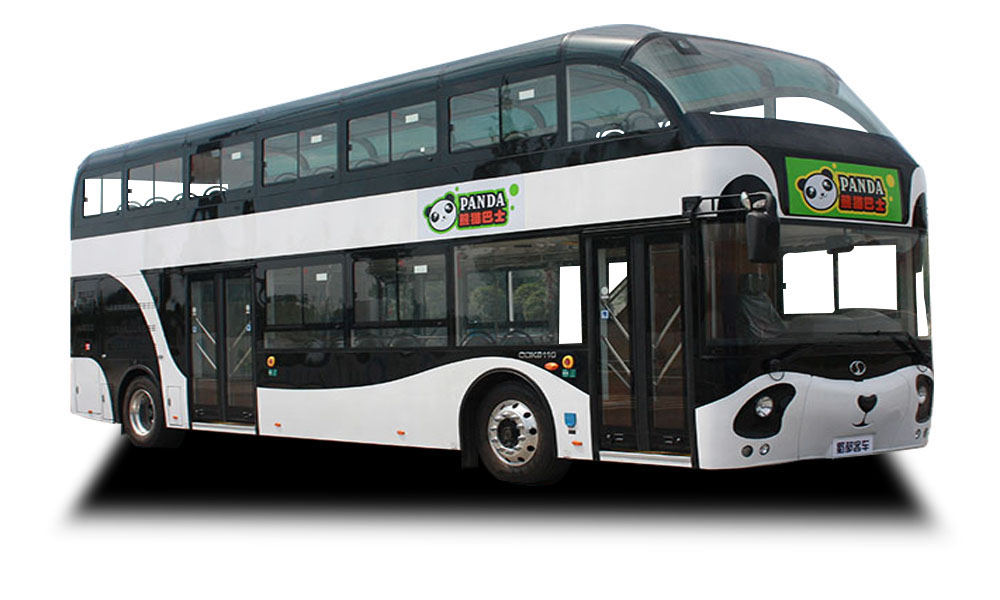

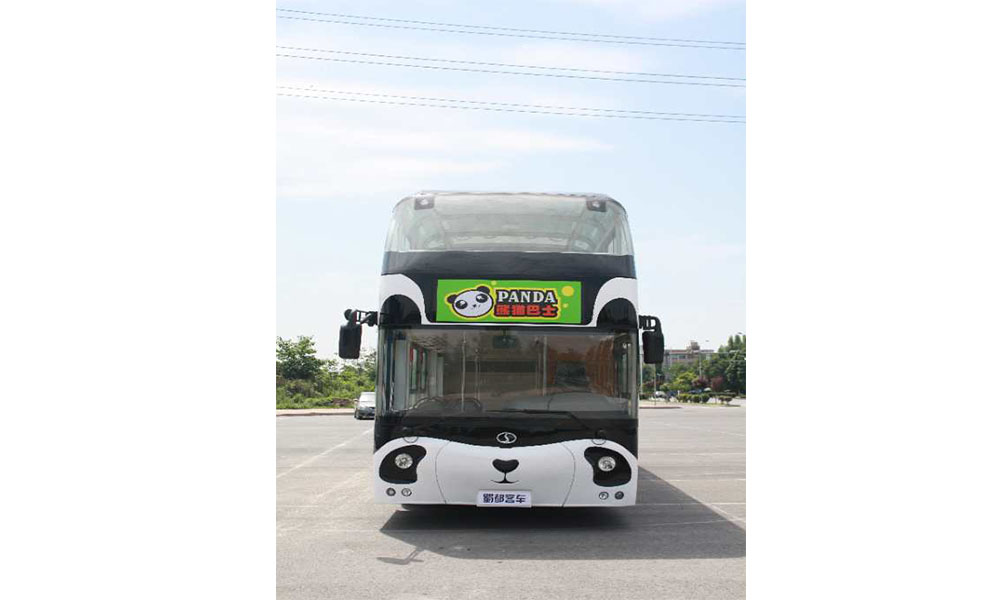

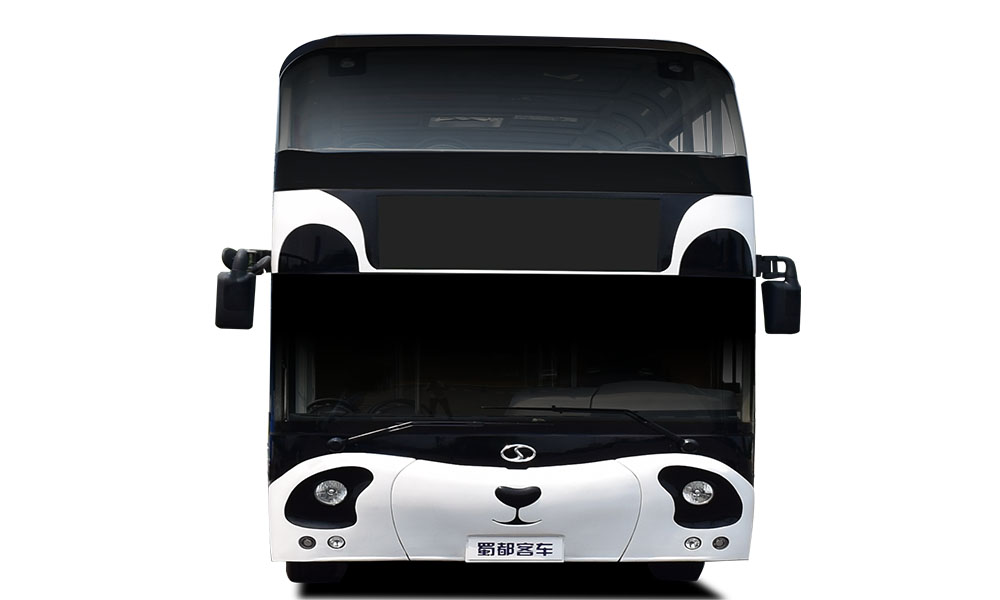

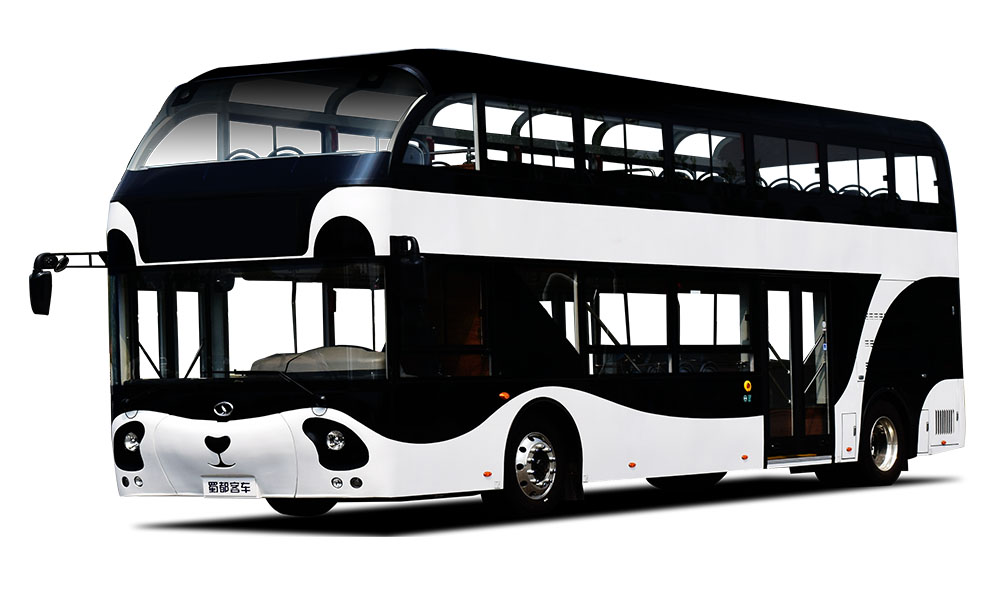

Ø  车辆整体仿生造型风格,体现地域特征同时符合现代观光潮流。

Ø  采用LED大灯高亮节能。

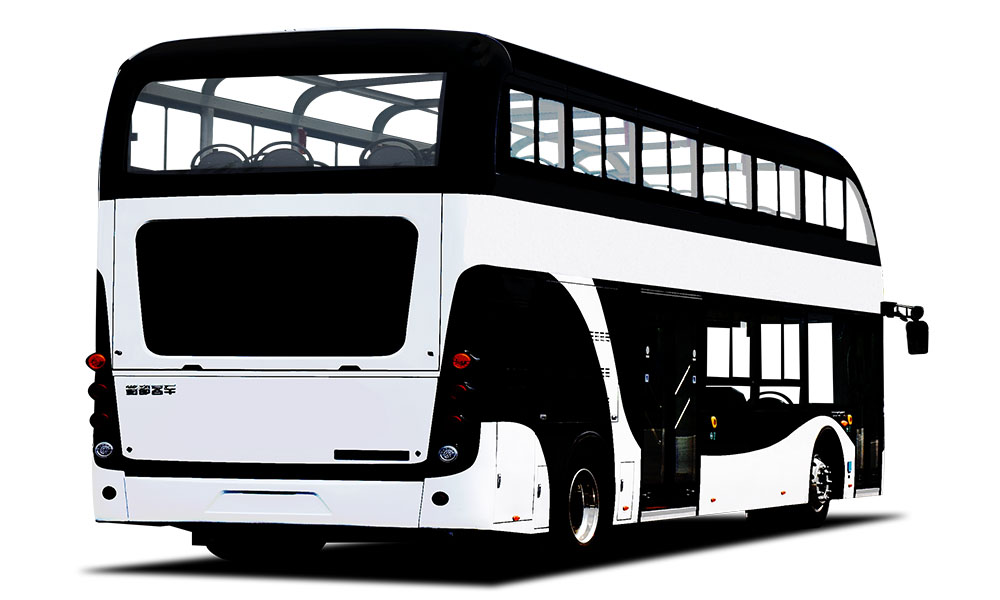

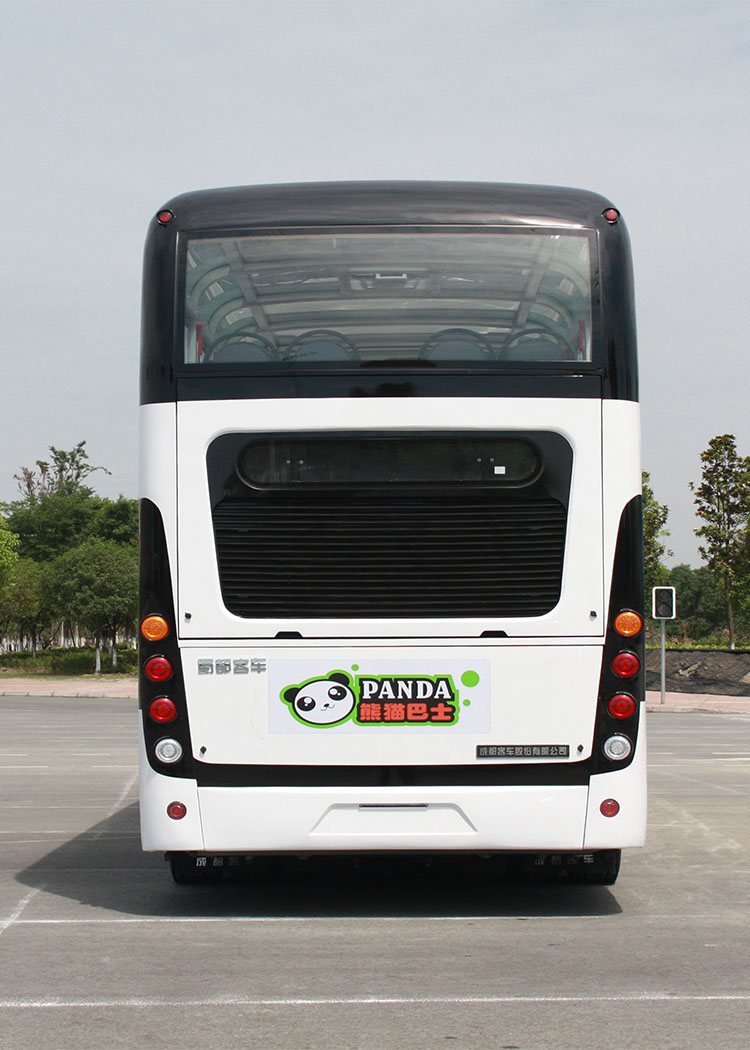

Ø  后围造型简洁大气,车顶前后风窗与透明顶棚的融合设计,车内更显通透,整体视觉效果达到最佳。

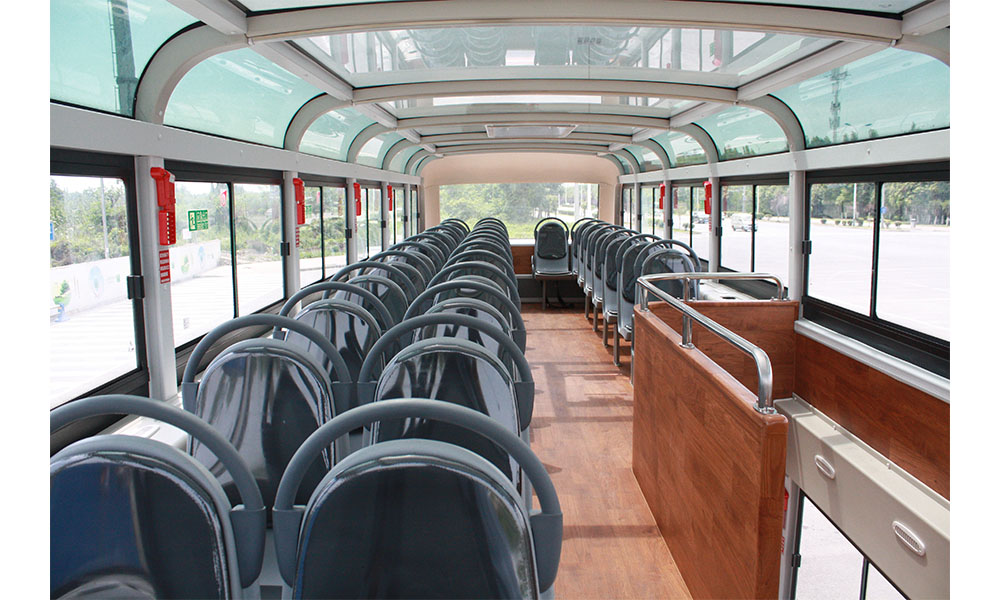

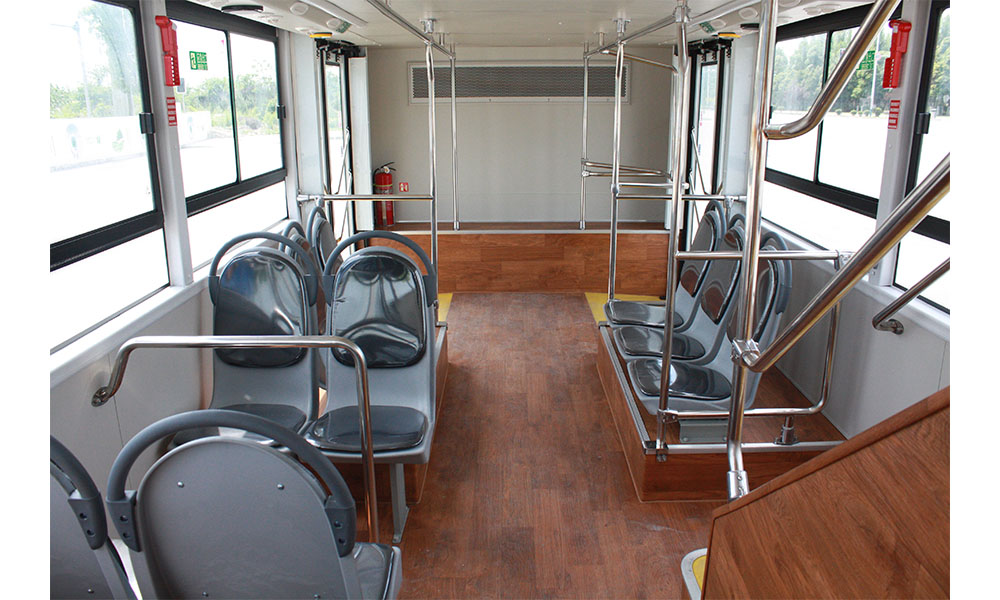

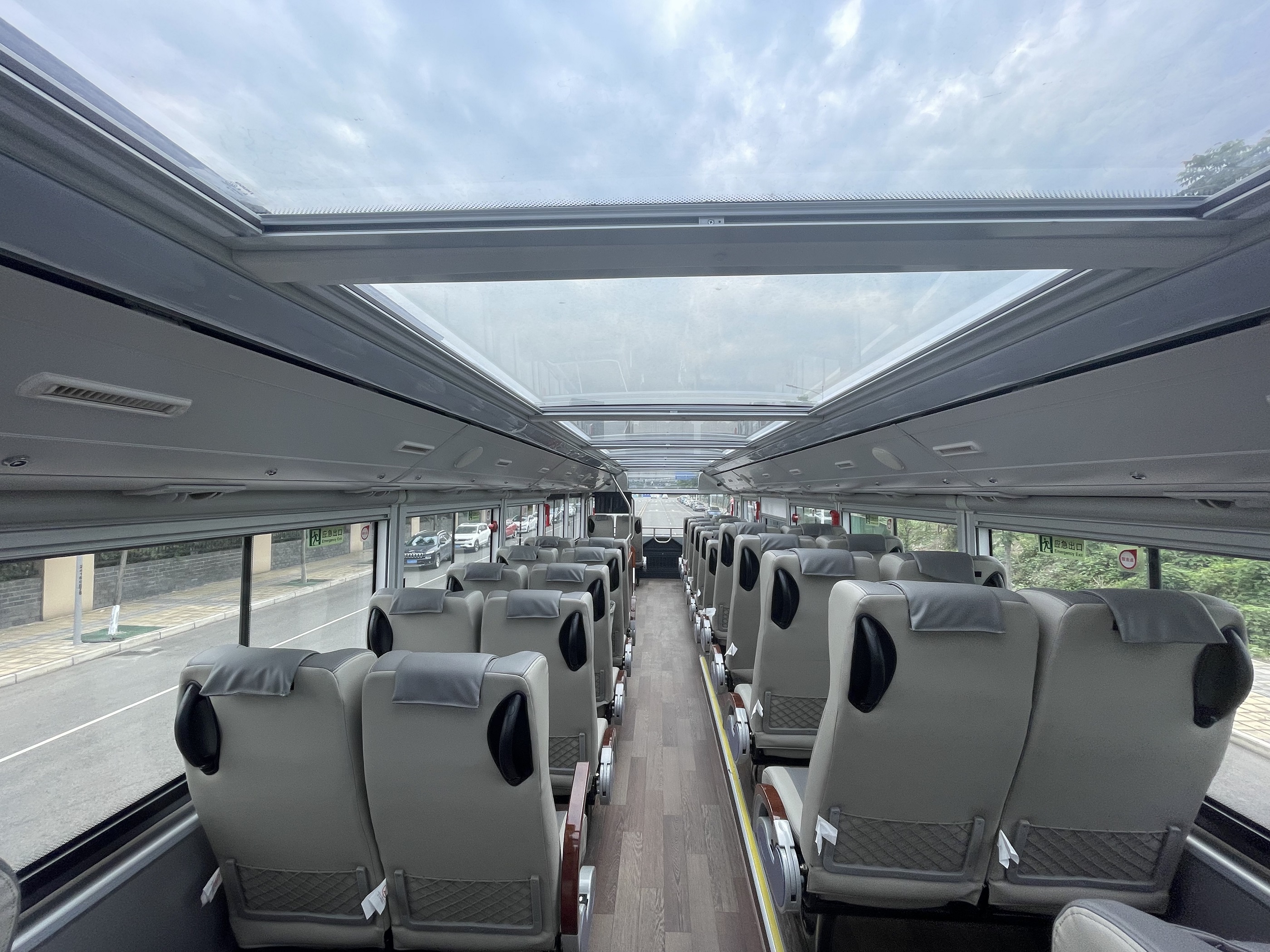

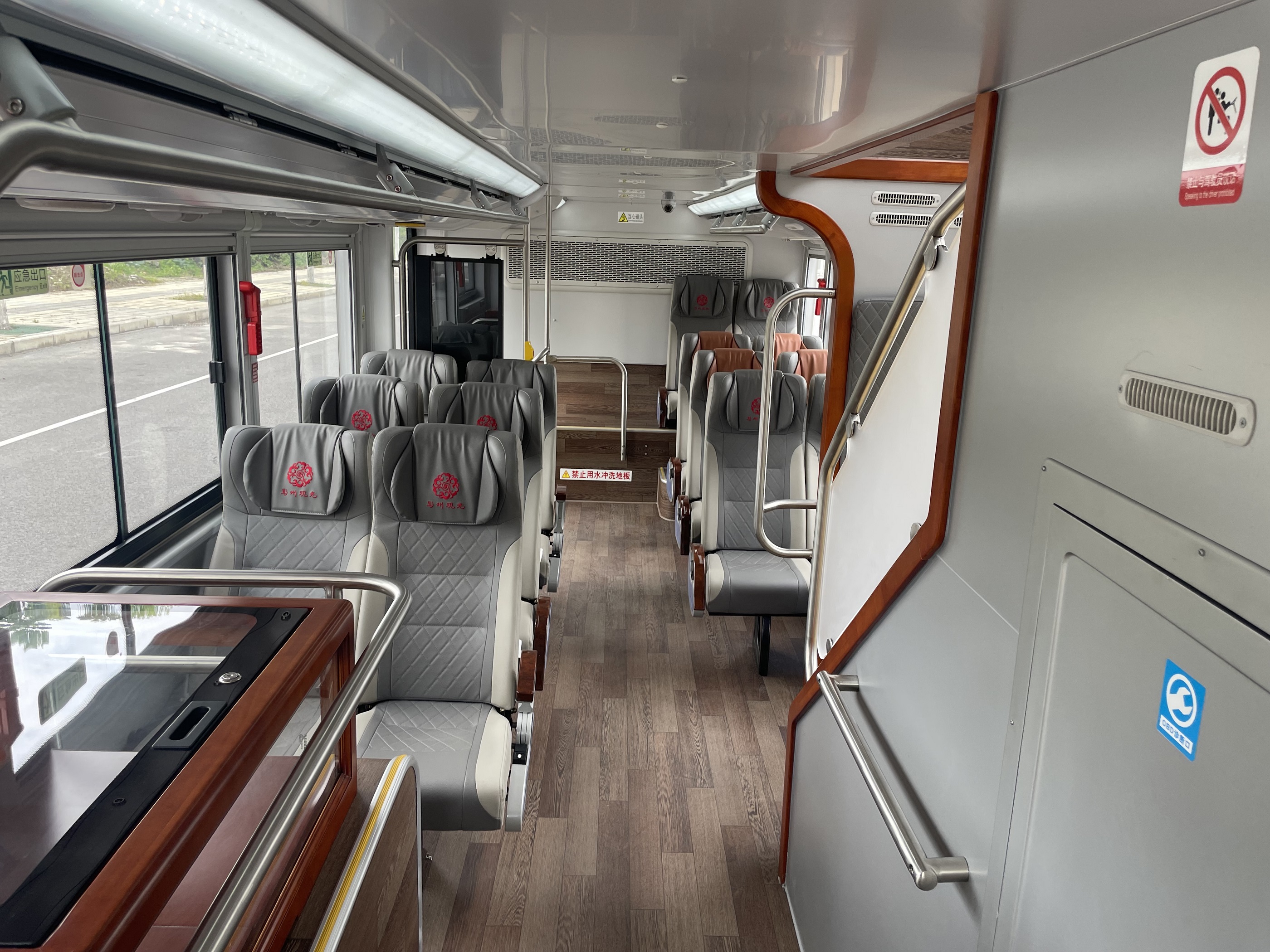

Ø  内饰设计温馨舒适,观光及放松心情休憩两不误。顶部透明,乘客视野更加开阔。

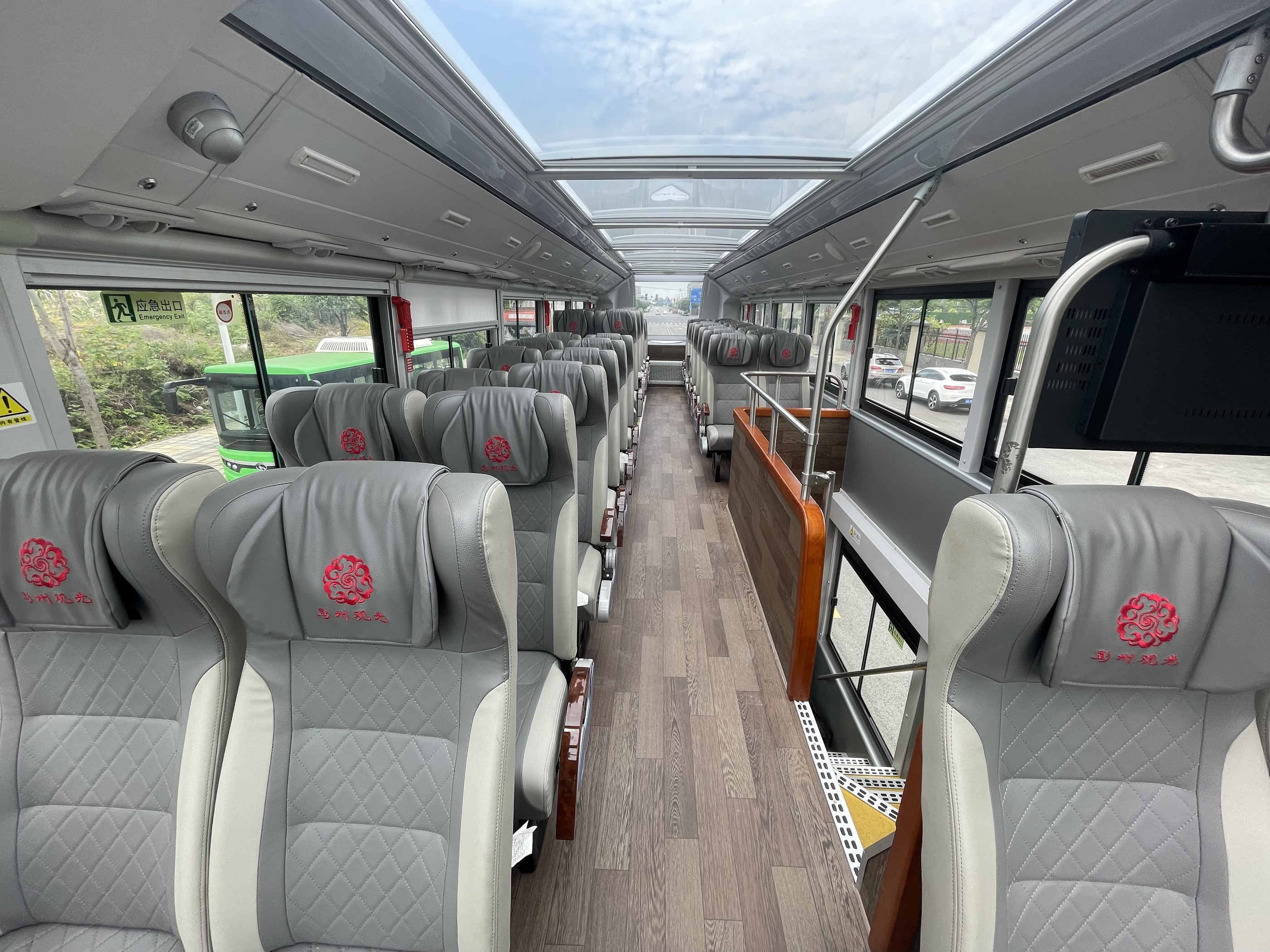

Ø  采用商务乘客座椅,外形高档、选料考究、手工精细;符合人机工程学原理的座、背设计,采用聚氨酯高回弹冷发泡海棉、加强型底架及连接件,豪华新颖、贴体舒适、可靠耐用。

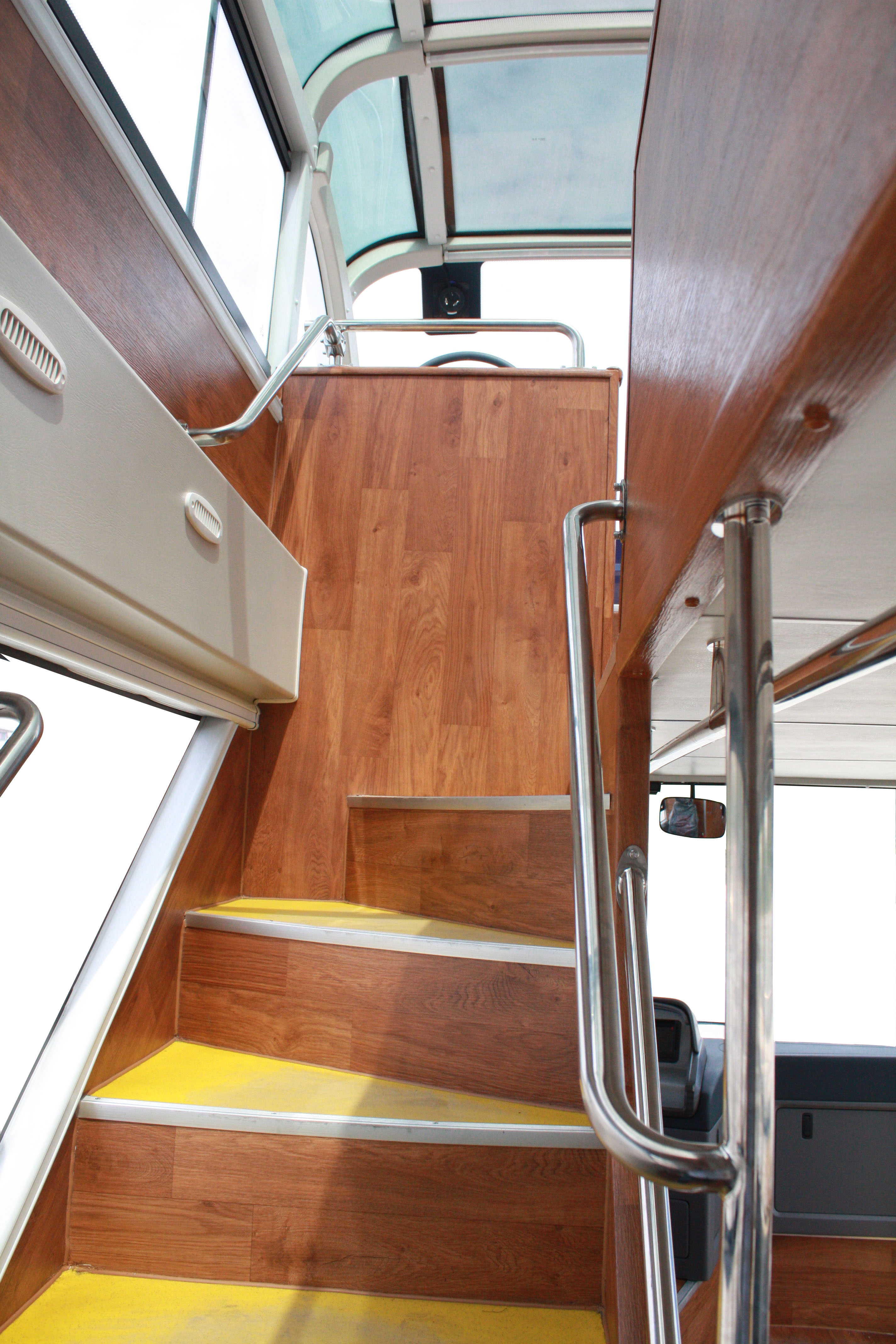

Ø  楼梯踏步、车厢配置水蓝色氛围灯,既美化夜间行车车内环境,又照明乘客脚下通道台阶,美化、安全,一举多得。

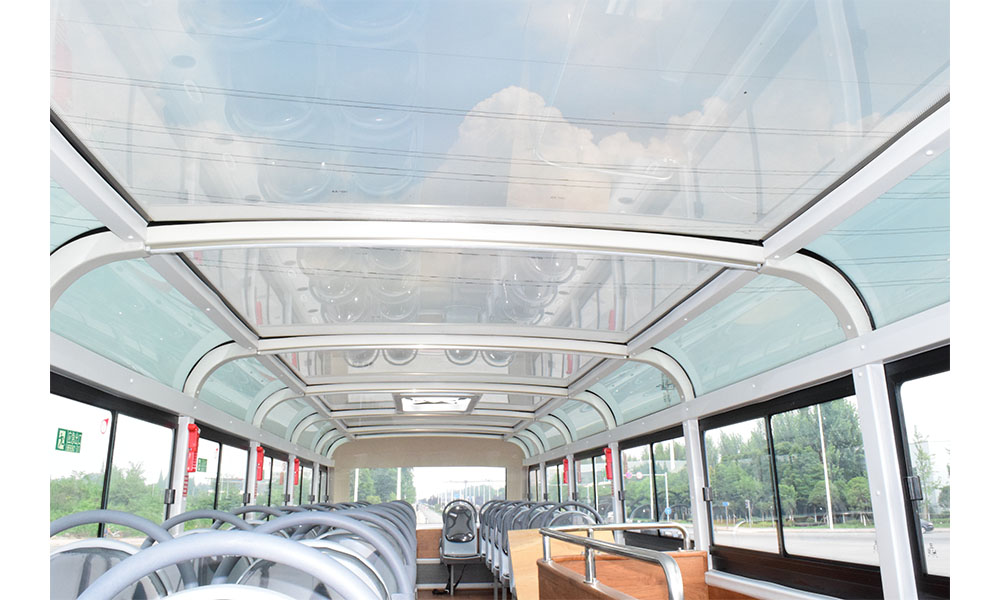

Ø  侧窗安装动车式遮阳帘,透明顶棚采用蜂巢式遮阳帘,美观整洁,防嗮遮阳效果显著。

Ø  设置文创小产品展示柜或售卖本地文创旅游小商品为旅客留下小纪念。

Ø  配置主动安全智能防控系统、烟雾报警、电池舱报警灭火和电池箱内灭火系统,为车辆提供全方位的安全保障。

Ø  配置表头可调式智能数字座舱,司机方便操作、保障车辆安全、呵护司机健康、整合全车数据、信息集中显示。

Ø  搭载360环视系统、电子后视镜、驾驶辅助系统等安全配置。

[[PRODUCT_LANG_EN]]

CDK6116CSBEV Battery Electric Double-Deck City Bus


The overall bionic modeling style of the vehicle reflects the regional characteristics and conforms to the modern tourism trend.



Use LED headlights to highlight energy saving.



rear shape is simple and atmospheric, roof front and rear wind Windows and transparent ceiling integration design, the interior is more transparent, the overall visual effect to achieve the best.



The interior design is warm and comfortable for sightseeing and relaxation. The top is transparent, giving passengers a wider view.



Business passenger seat, high-grade appearance, exquisite material selection, fine hand; Ergonomic principles of the seat, back design, polyurethane high rebound cold foam foam, reinforced frame and connecting parts, luxurious novel, comfortable, reliable and durable.



 stair steps and carriages are equipped with water blue atmosphere lights, which beautify the interior environment of driving at night and illuminate the passageway steps at the feet of passengers, beautifying and safe, and achieve multiple goals with one stone.



Side Windows are equipped with motor car type sunshade, and transparent ceiling adopts honeycomb type sunshade, which is beautiful and neat, and has significant suntan effect.



 Set up cultural and creative products display cabinets or sell local cultural and creative tourism commodities to leave a small memorial for tourists.



 It is equipped with active safety intelligent prevention and control system, smoke alarm, battery compartment alarm and battery compartment fire extinguishing system to provide all-round safety guarantee for vehicles.



Equipped with adjustable dial intelligent digital cockpit, the driver is convenient to operate, ensure the safety of the vehicle, care for the health of the driver, integrate the whole vehicle data, information centralized display.



It is equipped with a 360 circumnavigation system, electronic rearview mirror, driver assistance system and other safety features.


Product specifications
产品规格

蜀都ES11配置参数

车型

CDK6116CSBEV

长*宽*高(mm)

10700*2550*4180

额定载客人数(人)/座位数(座)

69,77/80/32-65

轴距(mm)

5800

最大总质量(kg)

18000

电池容量(kWh)

310.66

续航里程(等速法km)

766

电机额定/峰值功率(kW)

130/250

地板形式

低入口

悬挂系统

空悬

轮胎规格

275/70R22.5

[[PRODUCT_LANG_EN]]

Shudu ES11   Specifications

Vehicle type

CDK6116CSBEV

Length * Width * Height (mm)

10700*2550*4180

Rated   passenger capacity (persons)/Number of seats (seats)

69,77/80/32-65

Wheelbase (mm)

5800

Maximum total mass (kg)

18000

Battery capacity (kWh)

310.66

Range (constant speed method km)

766

Motor rating/Peak power (kW)

130/250

Floor form

Low entry

Suspension system

Air suspension

Tyre specification

275/70R22.5
