蜀都新能源EC11系列纯电动城市客车

产品特点
产品规格
Product Features
产品特点

CDK6117CBEV4纯电动城市客车

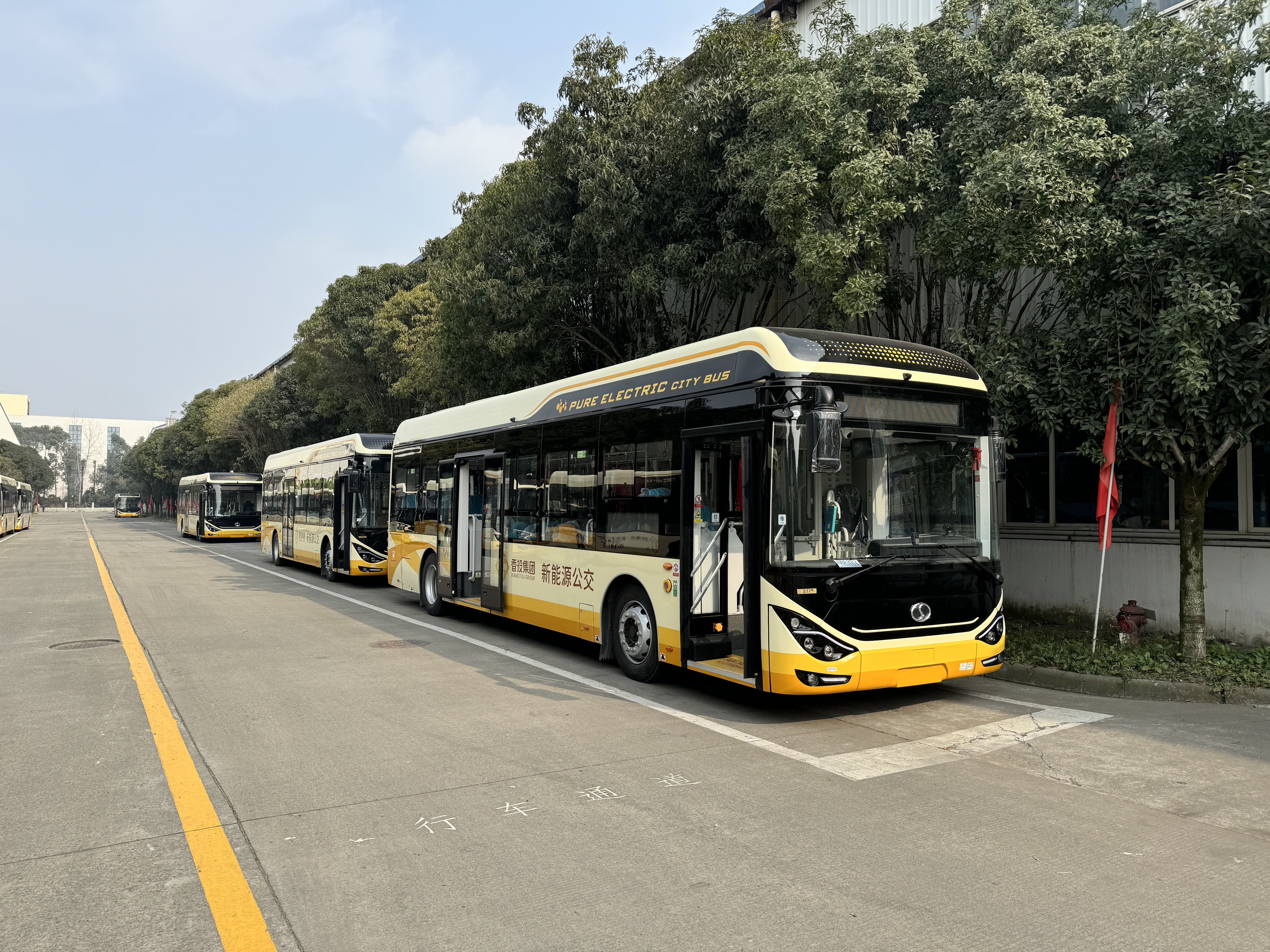

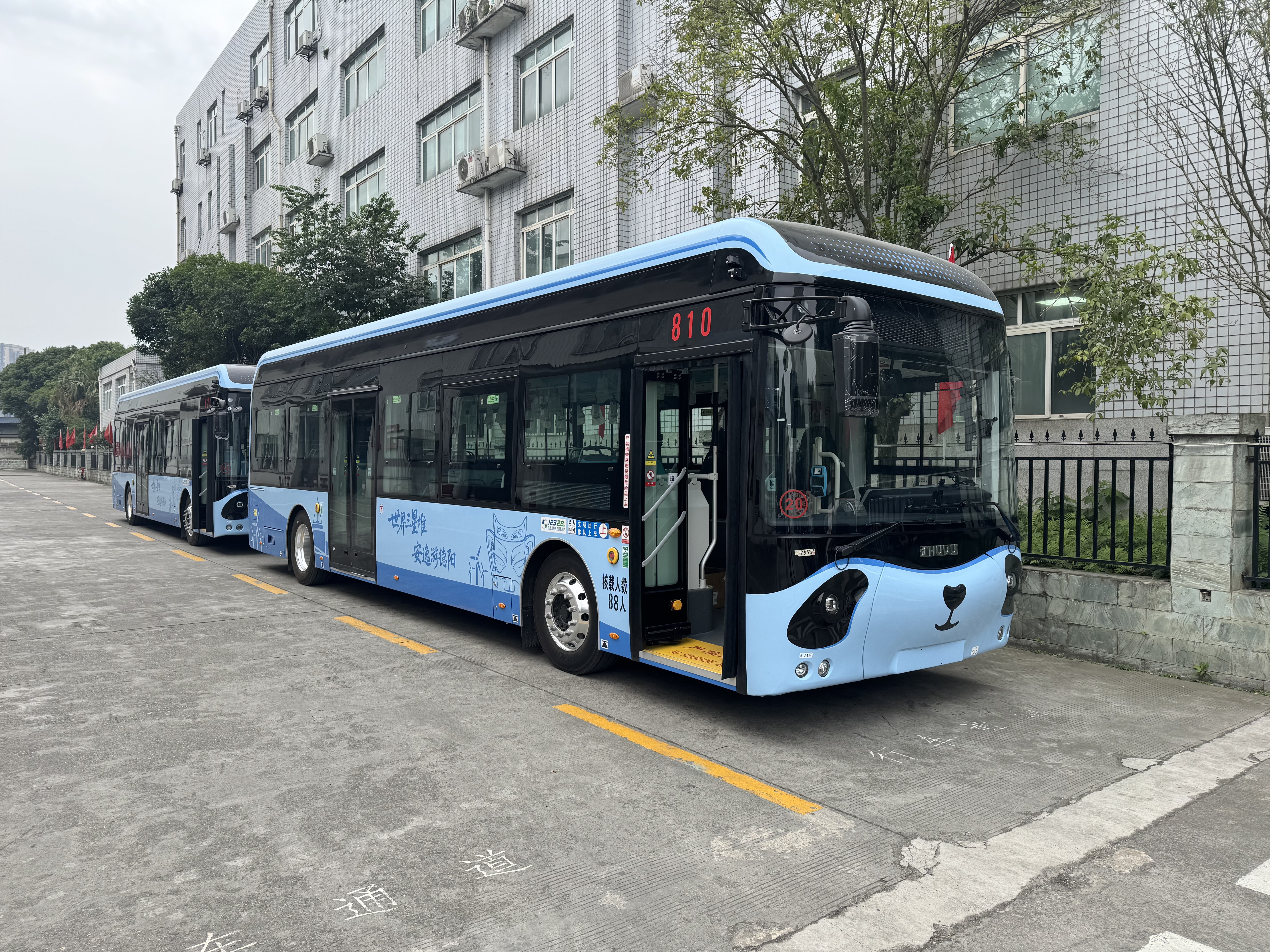

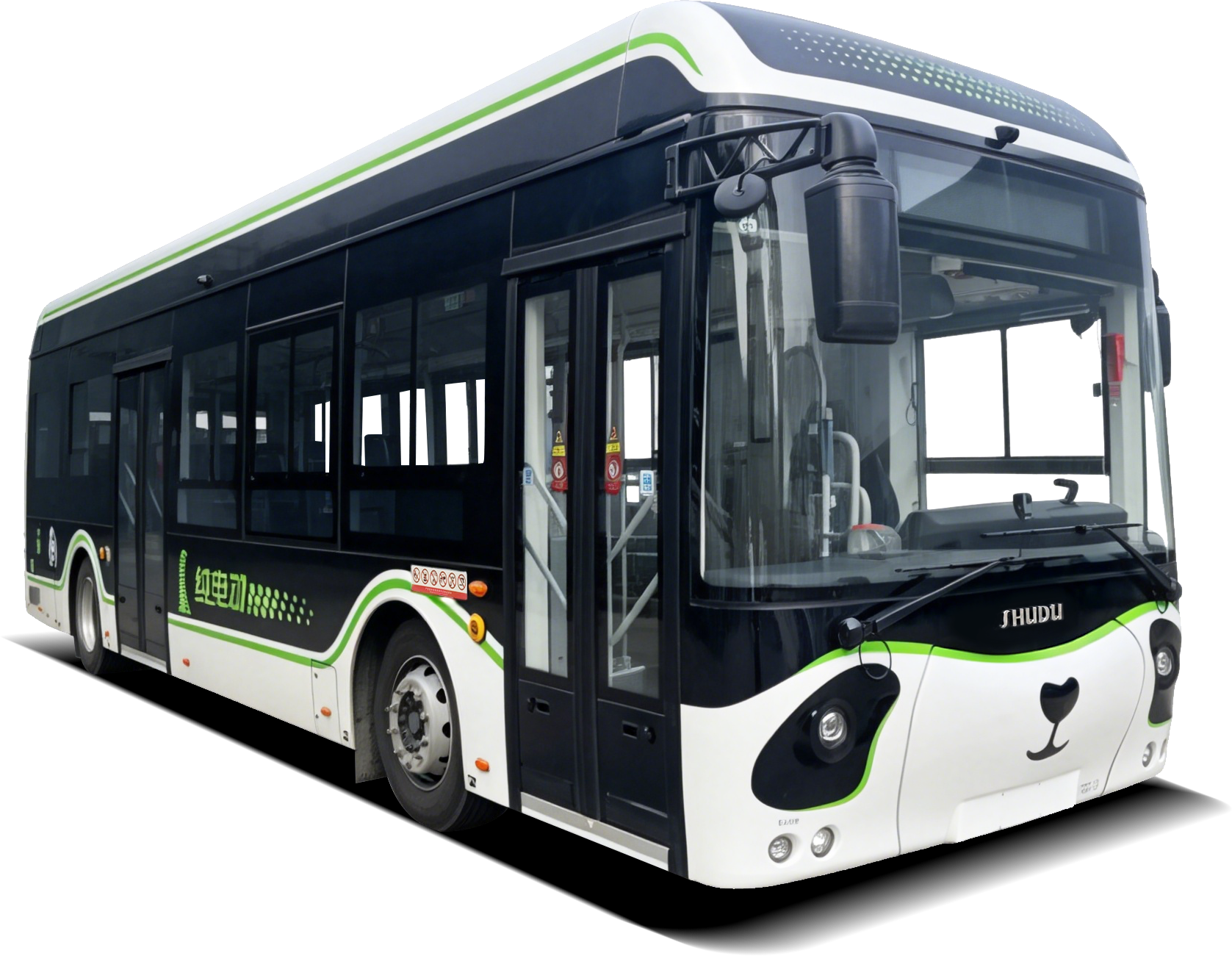

Ø  造型融合金沙与三星堆面具元素,兼具历史底蕴与现代感。另一款造型采用了“大熊猫”外型元素,以大熊猫为本体,进行元素提取、简化设计。其丰腴富态、憨态可掬的形象深受市民朋友喜爱。

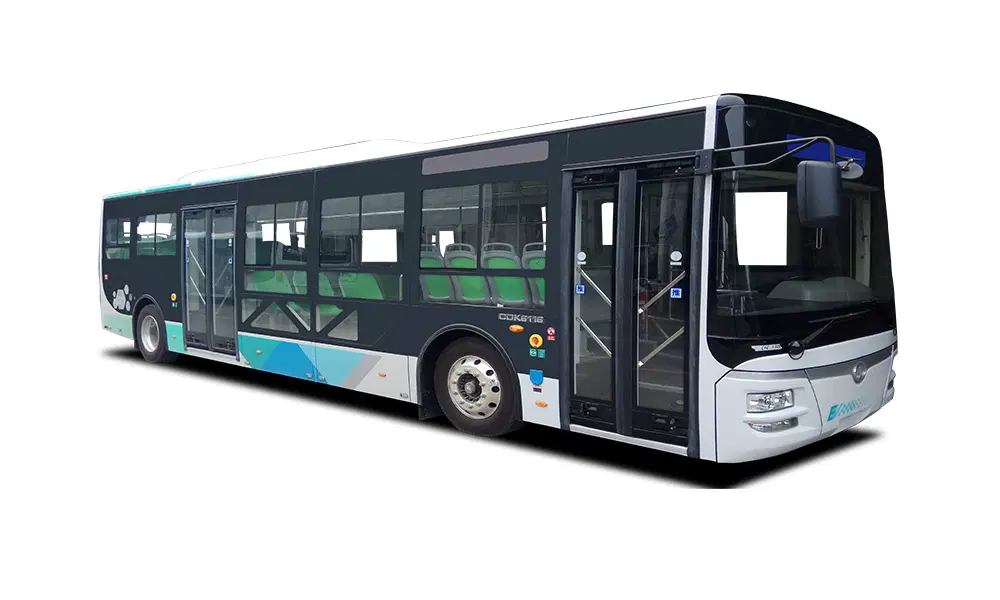

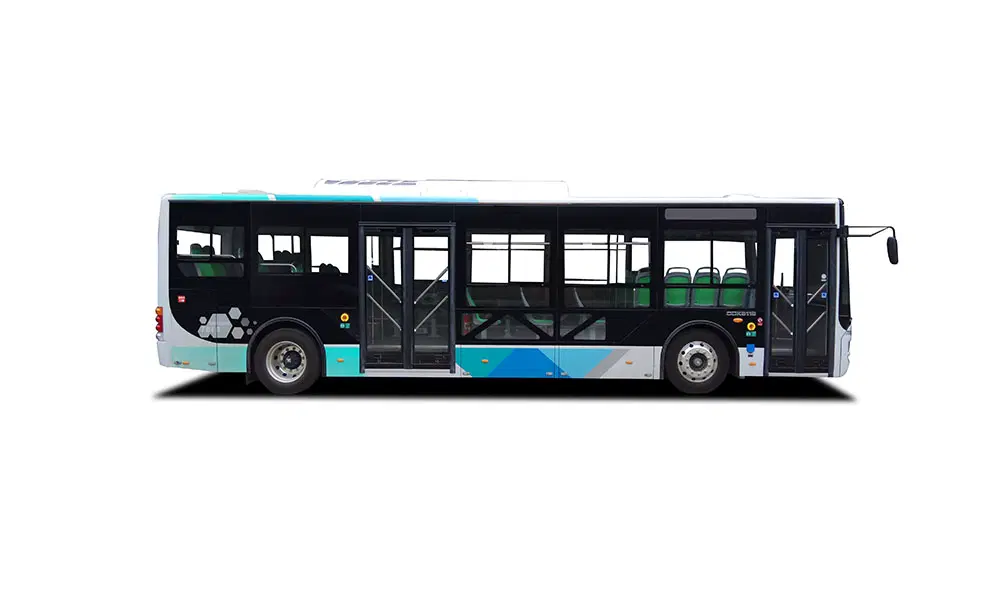

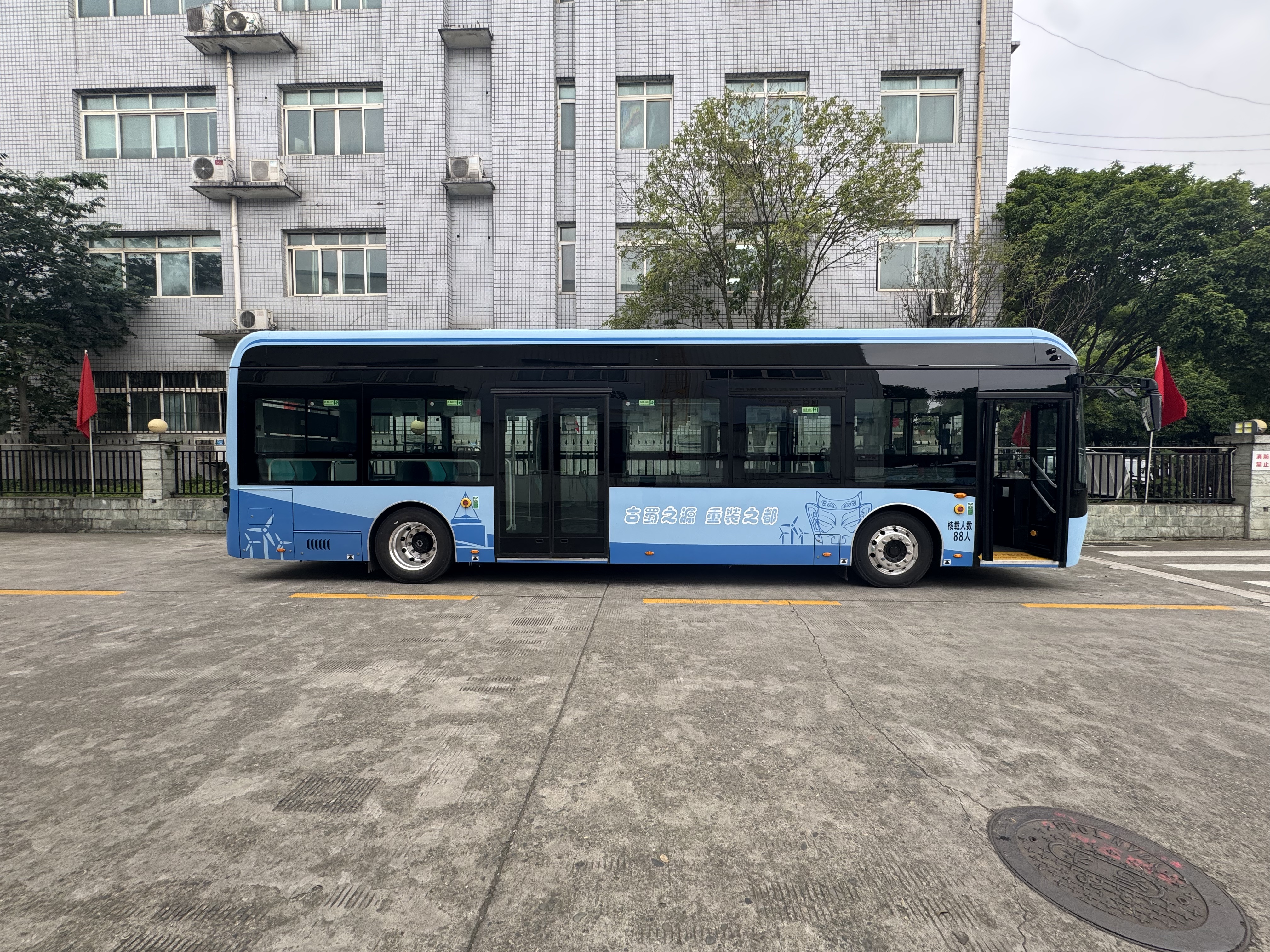

Ø  外观时尚大方,侧围采用镂空造型,提高车内透光度,增加乘员舒适性。



Ø  采用一级踏步低入口、扁平宽胎,可提供轮椅通道,极具人性化。



Ø  车内空气净化系统,保证良好的车内空气质量。



Ø  空气悬架的配置,极大的提升了车辆的行驶平顺性和乘坐舒适性。

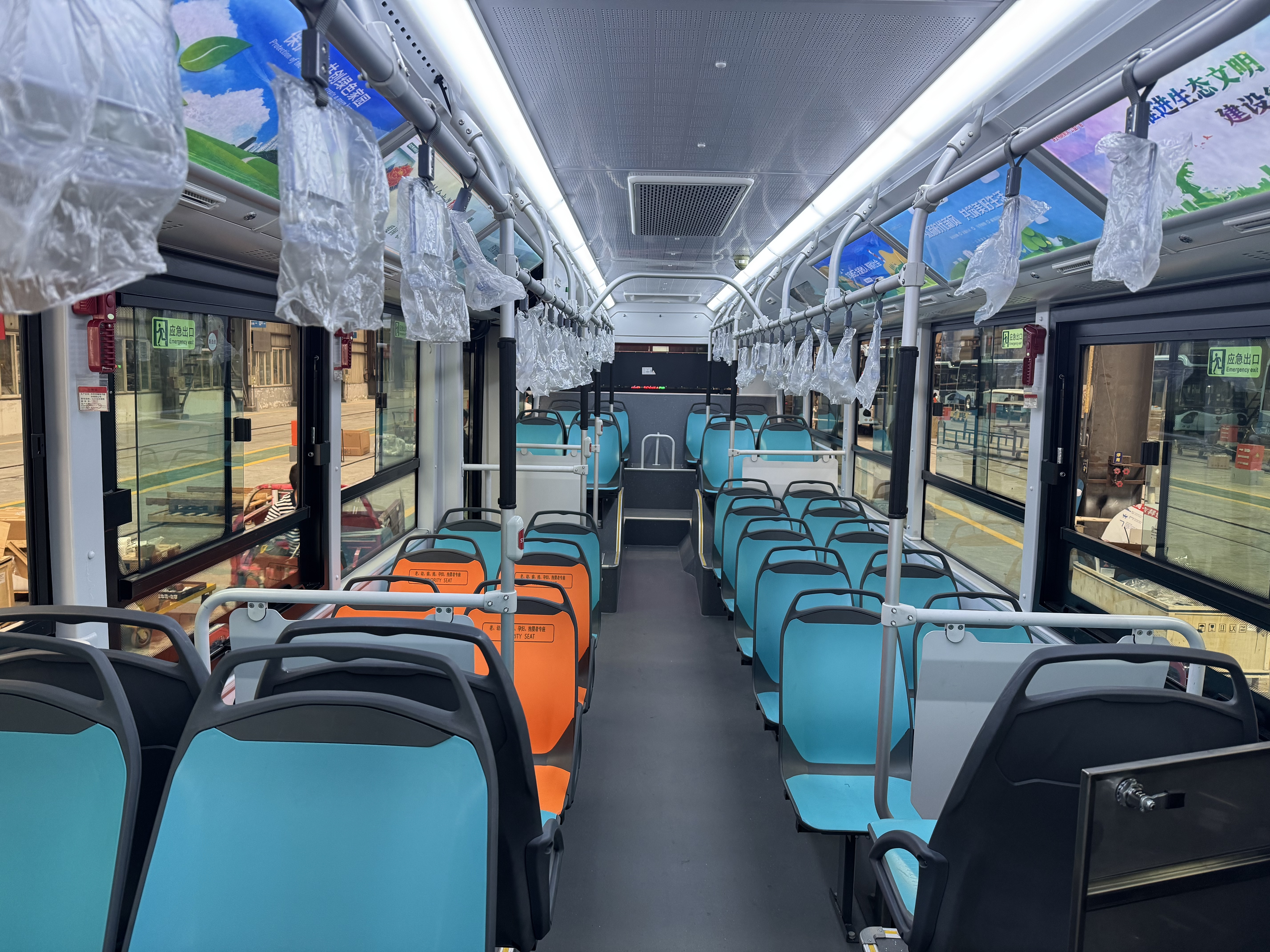

Ø  车辆空间宽敞,投币机嵌入仪表台,形成无障碍通道;



可使用不落地扶手立柱增大了上车通道宽度,提升上客速度。

[[PRODUCT_LANG_EN]]

CDK6117CBEV4Battery Electric City Bus


The exterior design draws inspiration from the Jinsha site and Sanxingdui masks, seamlessly merging historical heritage with contemporary style. Another variant features the giant panda as its design muse, with streamlined styling that extracts and refines the animal's distinctive elements. The panda's delightful, chubby, and lovable image has been warmly embraced by the public.



The appearance is fashionable and generous, and the side wall adopts hollow shape to improve the interior light transmittance and increase the occupant comfort.



The use of first step low entrance, flat wide tire, can provide wheelchair access, very user-friendly.



Interior air purification system to ensure good interior air quality.



The configuration of the air suspension greatly improves the ride comfort and ride comfort of the vehicle.



Spacious interior with fare box integrated into the dashboard for a clear, obstruction-free aisle.


The use of non-floor-mounted handrail posts increases the width of the boarding passage, thereby improving boarding speed.

Product specifications
产品规格

蜀都EC11配置参数

车型

CDK6117CBEV4

长*宽*高(mm)

10550,10700*2550*3250

额定载客人数(人)/座位数(座)

88,85,98/19-40

轴距(mm)

5800

最大总质量(kg)

18000

电池容量(kWh)

255.02

310.66

续航里程(等速法km)

500

610

电机额定/峰值功率(kW)

130/250

地板形式

一级踏步/低地板



悬挂系统

空悬



轮胎规格

275/70R22.5

[[PRODUCT_LANG_EN]]

Shudu EC11   Specifications

Vehicle type

CDK6117CBEV4

Length * Width * Height (mm)

10550,10700*2550*3250

Rated   passenger capacity (persons)/Number of seats (seats)

88,85,98/19-40

Wheelbase (mm)

5800

Maximum total mass (kg)

18000

Battery capacity (kWh)

255.02

310.66

Range (constant speed method km)

500

610

Motor rating/Peak power (kW)

130/250

Floor form

First step/low-floor

Suspension system

Air suspension

Tyre specification

275/70R22.5
