蜀都新能源EC70系列纯电动城市客车(短后悬)

产品特点
产品规格
Product Features
产品特点

CDK6700CBEV纯电动城市客车


Ø  7米长度满足支线公交和接驳线路的灵活性。



Ø  全承载式车身结构,有限元分析,车身骨架采用高强度钢,封闭环设计,保证车身结构安全可靠。



Ø  采用全低地板结构,车内站立区地板全平,通道直达最后排,为乘客提供了更大更舒适的车内空间。



Ø  前中开门,实现乘客上下车分流,提高运营效率.



Ø  前后空气悬架,提供良好乘坐舒适性。



Ø  半隐藏式投币机布局,有效优化前门处通道空间。



Ø  配备高效驱动电机与智能电控系统,集成智能调度、主动安全驾驶辅助和健康监控功能,是一款安全、智能、环保、舒适的全龄友好型精品公交。

[[PRODUCT_LANG_EN]]

CDK6700CBEV Battery Electric City Bus


The 7 m length allows for the flexibility of feeder buses and feeder lines.



Full bearing body structure, finite element analysis, body frame using high-strength steel, closed ring design, to ensure the safety and reliability of the body structure.

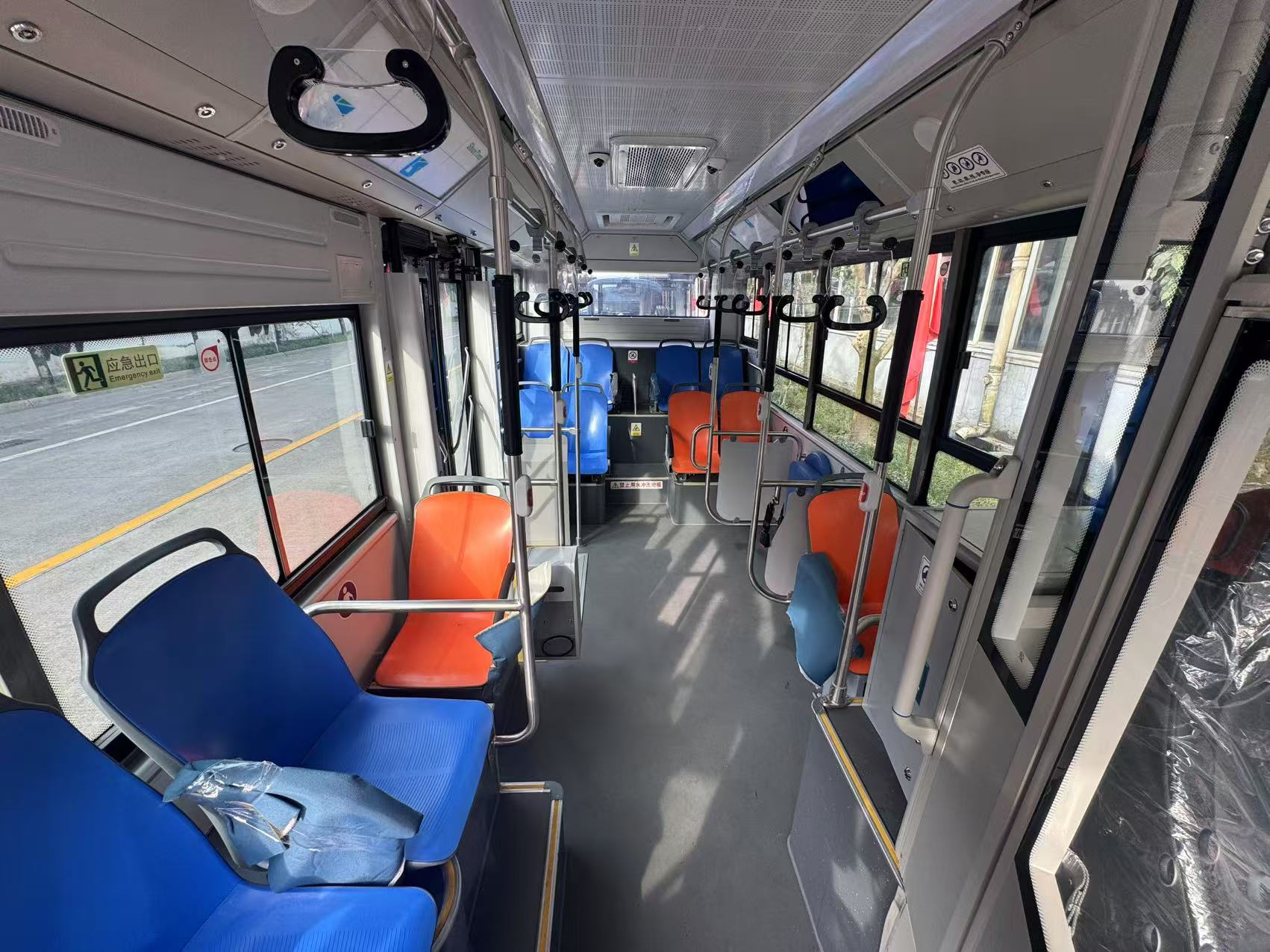

With a full low floor structure, the floor of the standing area inside the car is completely flat, and the channel reaches the last row, providing passengers with a larger and more comfortable interior space.



The front and center doors open to realize the distribution of passengers on and off the bus and improve operation efficiency.



Front and rear air suspension for good ride comfort.



The layout of the semi-hidden coin machine effectively optimizes the channel space at the front door.



Equipped with a high-efficiency drive motor and an intelligent electronic control system, it integrates smart scheduling, active safety driving assistance, and health monitoring functions. It is a safe, intelligent, eco-friendly, and comfortable premium bus designed to be friendly to passengers of all ages.


Product specifications
产品规格

蜀都EC70配置参数

车型



CDK6700CBEV

长*宽*高(mm)

6995,7005*2350*3050

额定载客人数(人)/座位数(座)

50/11-20

轴距(mm)

4150

最大总质量(kg)

9700

电池容量(kWh)

127.51/133.31/176.04

续航里程(等速法km)

415

电机额定/峰值功率(kW)

80/180

地板形式

低地板

悬挂系统

空悬



轮胎规格

215/70R17.5

[[PRODUCT_LANG_EN]]

Shudu EC70   Specifications

Vehicle type

CDK6700CBEV

Length * Width * Height (mm)

6995,7005*2350*3050

Rated   passenger capacity (persons)/Number of seats (seats)

50/11-20

Wheelbase (mm)

4150

Maximum total mass (kg)

9700

Battery capacity (kWh)

127.51/133.31/176.04

Range (constant speed method km)

415

Motor rating/Peak power (kW)

80/180

Floor form

low-floor

Suspension system

Air suspension

Tyre specification

215/70R17.5
