蜀都新能源EC89系列纯电动城市客车

产品特点
产品规格
Product Features
产品特点

CDK6890CBEV1纯电动城市客车


Ø  采用全低地板结构,车内站立区地板全平,通道直达最后排,为乘客提供了更大更舒适的车内空间。



Ø  下客门采用塞拉门,并配备了无障碍坡板,更加方便幼童及老人上下车。



Ø  全新设计的仪表台外观简洁大方,采用随动式仪表台,配12吋数字式中控大屏汇集了车辆开关、空调控制、视频显示、车辆信息、仪表控制等多种应用,智能化触摸操作,司机可以一屏了解车辆状态,集中控制车辆各种功能。



Ø  车内采用不锈钢磨砂质感立柱扶手,低调奢华。中部区域座椅、扶手、垃圾桶、采用不落地设计,使车内更加简洁,可最大扩充站立乘客脚部空间,全方位不留卫生死角。



Ø  客舱空调带有气净化功能,空调回风口带有静电集尘、强离子发生器、光触媒过滤等装置,配置车内空气净化器,可实现杀菌、祛味、除尘等功能,为乘客持续提供清新空气。



Ø  底盘采用装甲式设计,重要的三电设备、管路、高低压线路均用钢板加以保护、封闭,保证底盘重要设备不外露、更安全。



Ø  车内信息显示屏、多媒体显示屏、电子站点显示屏、空气质量显示屏等多块显示设备加上语音提示,全方位的保证乘客实时了解车辆信息。



Ø  车内均匀分布的乘客下车铃按钮,随时随地方便下车乘客提示司机下车需求。

[[PRODUCT_LANG_EN]]

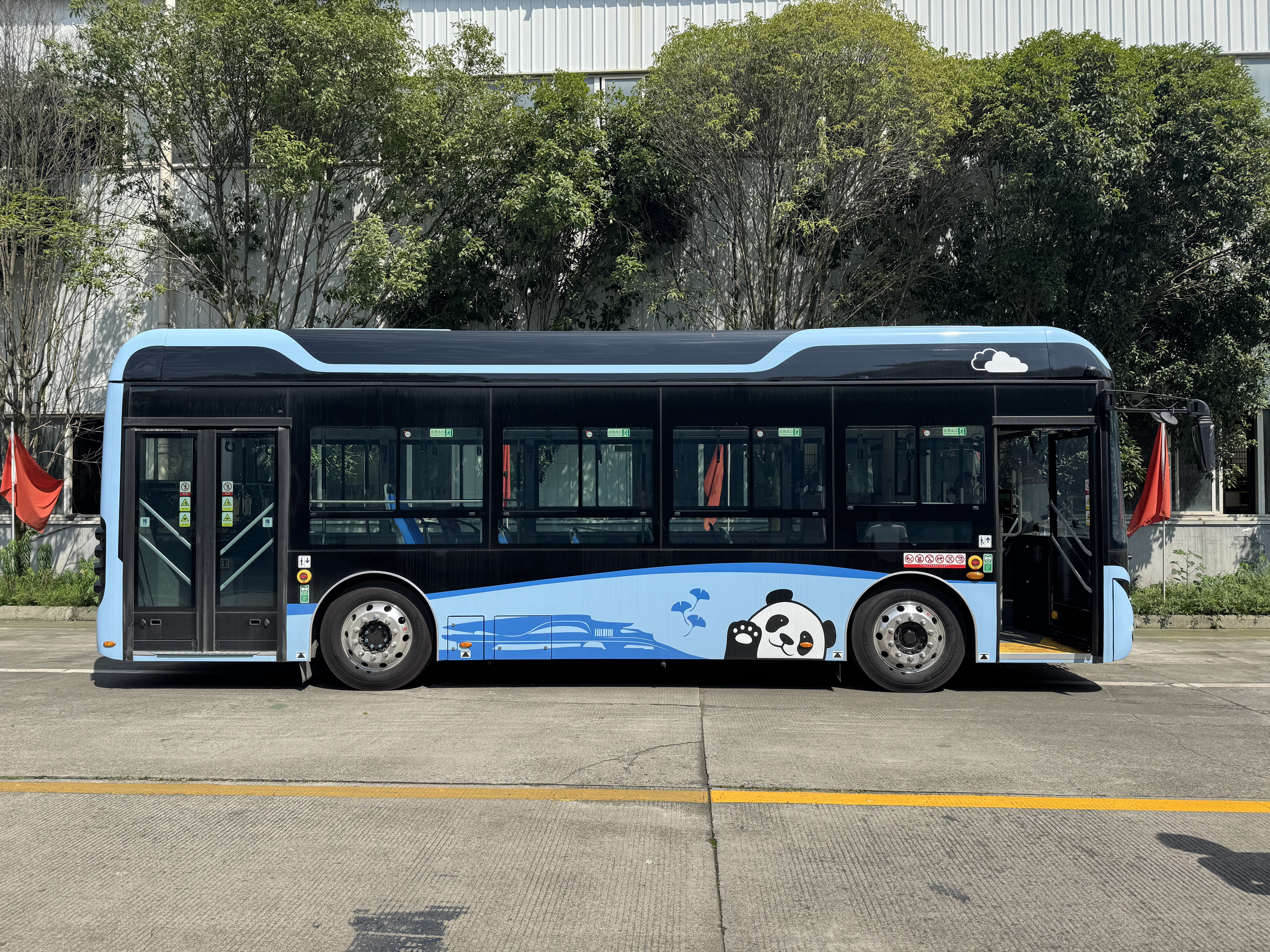

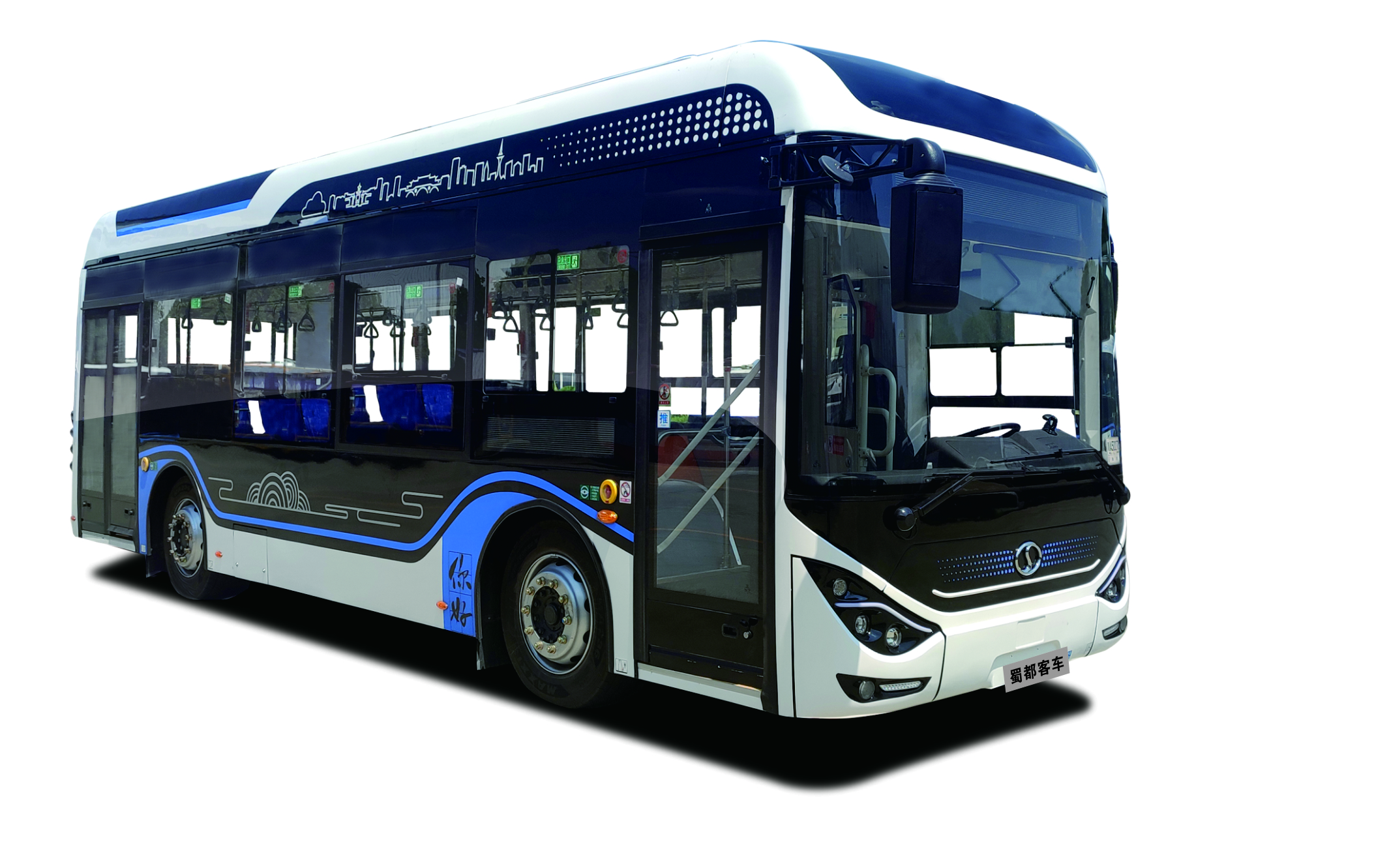

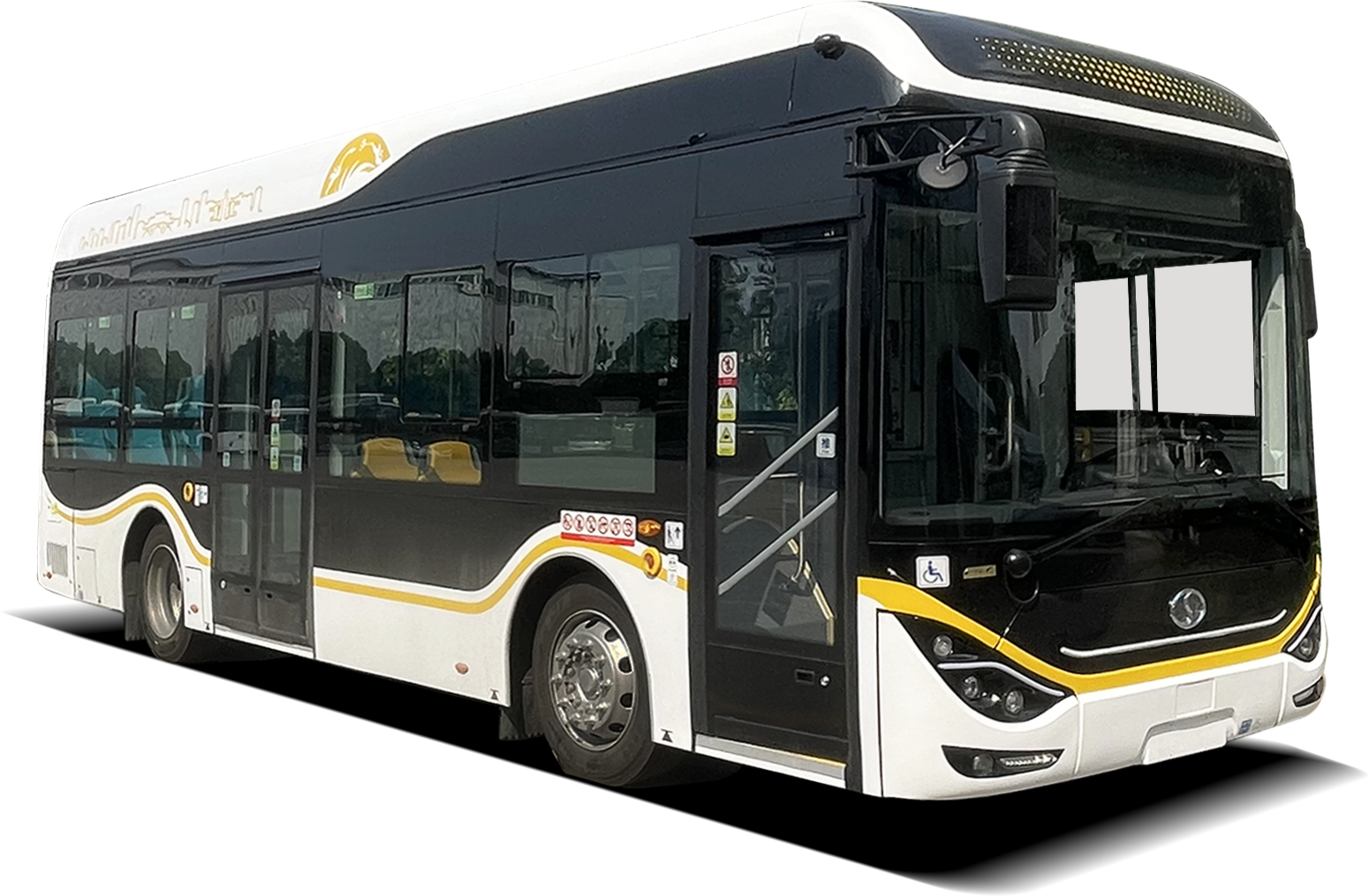

CDK6890CBEV1 Battery Electric City Bus


With a full low floor structure, the floor of the standing area inside the car is completely flat, and the channel reaches the last row, providing passengers with a larger and more comfortable interior space.



The passenger door adopts a sliding door, and is equipped with a barrier-free ramp, which is more convenient for children and the elderly to get on and off the bus.



The newly designed instrument panel is simple and elegant in appearance, with a follow-up instrument panel, with a 12-inch digital central control screen, which brings together vehicle switches, air conditioning control, video display, vehicle information, instrument control and other applications, intelligent touch operation, the driver can understand the vehicle status in one screen and centrally control various functions of the vehicle.

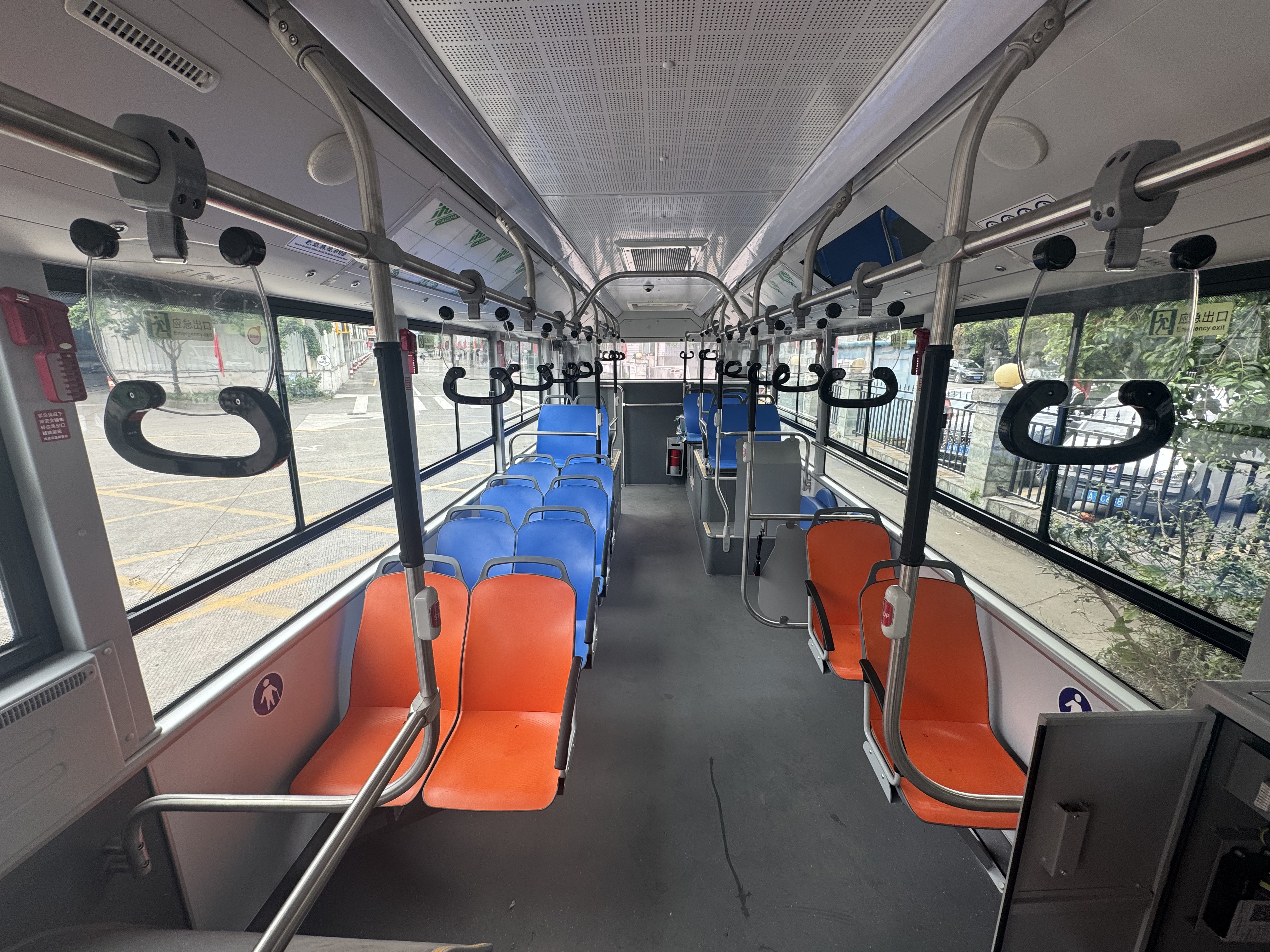

The interior adopts stainless steel frosted column armrests for low-key luxury. The central area seats, armrests, trash cans, and non-landing design make the car more concise, can maximize the space of standing passengers' feet, and leave no sanitary dead corners in all aspects.



Cabin air conditioning with air purification function, air conditioning return outlet with electrostatic dust collection, strong ion generator, photocatalytic filtration and other devices, equipped with air purifier inside the car, can achieve sterilization, odor removal, dust removal and other functions, for passengers to continue to provide fresh air.



The chassis adopts the armored design, and the important three electric equipment, pipelines, high and low voltage lines are protected and closed with steel plates to ensure that the important equipment of the chassis is not exposed and safer.



In-car information display, multimedia display, electronic site display, air quality display and other display devices with voice prompts, a full range of ensure that passengers understand the vehicle information in real time.



The passenger disembark bell button evenly distributed in the car can prompt the driver to get off the bus anytime and anywhere.

Product specifications
产品规格

蜀都EC89配置参数

车型

CDK6890CBEV1

长*宽*高(mm)

8930*2550*3150

额定载客人数(人)/座位数(座)

71,80/15-23

轴距(mm)

4500

最大总质量(kg)

14500

电池容量(kWh)

208.66

续航里程(等速法km)

550

电机额定/峰值功率(kW)

60*2/120*2

地板形式

低地板

悬挂系统

空悬

轮胎规格

275/70R22.5,355/50R22.5

[[PRODUCT_LANG_EN]]

Shudu EC89   Specifications

Vehicle type

CDK6890CBEV1

Length * Width * Height (mm)

8930*2550*3150

Rated   passenger capacity (persons)/Number of seats (seats)

71,80/15-23

Wheelbase (mm)

4500

Maximum total mass (kg)

14500

Battery capacity (kWh)

208.66

Range (constant speed method km)

550

Motor rating/Peak power (kW)

60*2/120*2

Floor form

low-floor

Suspension system

Air suspension

Tyre specification

275/70R22.5,355/50R22.5
